This master marine diesel troubleshooting guide provides a structured diagnostic system used by trained technicians to identify real-world engine problems based on symptoms.

The Ultimate Marine Diesel Diagnostic Hub

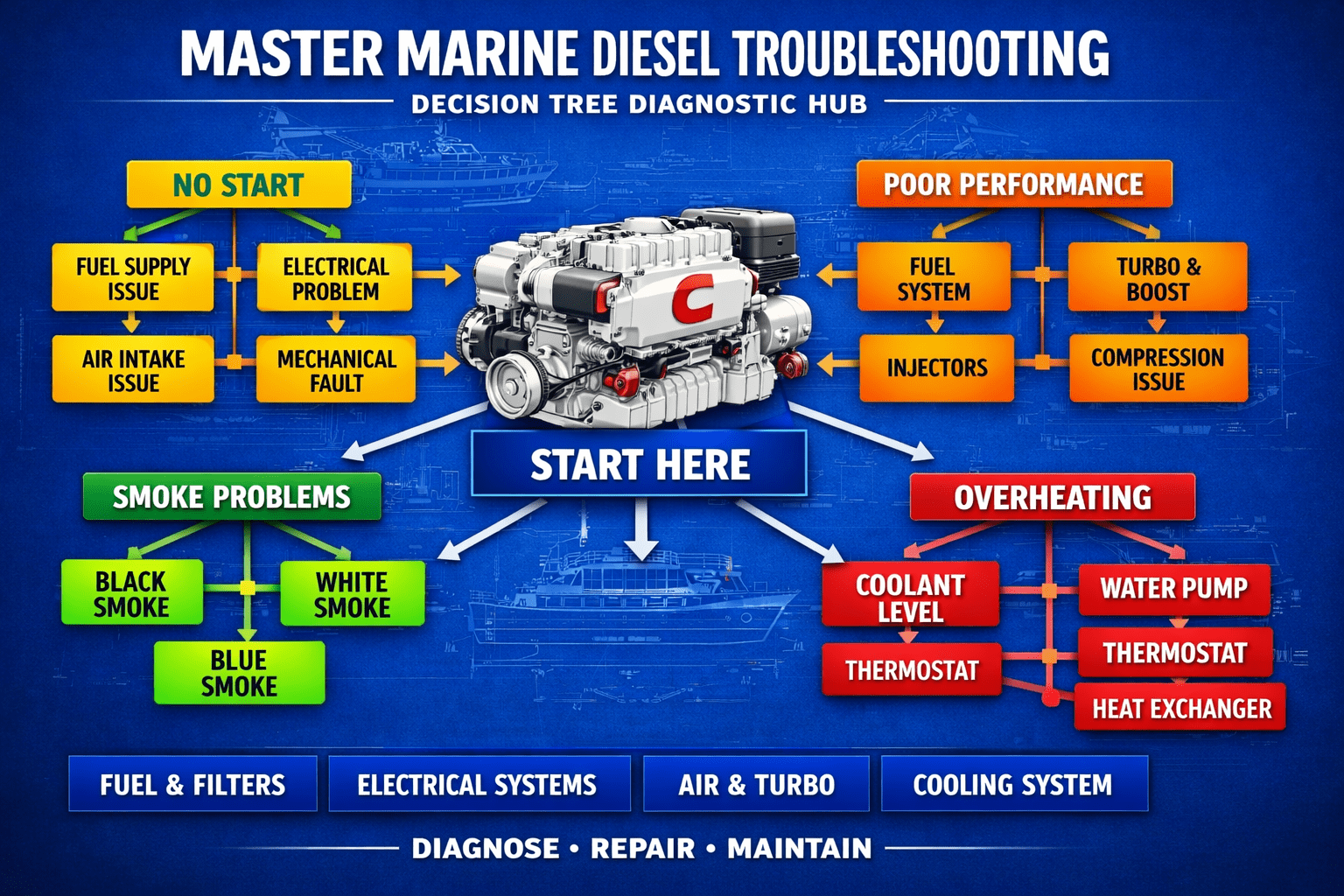

Our Master Troubleshooting Guide organizes common marine diesel engine problems into a step-by-step decision tree — covering fuel, cooling, turbo, electrical, smoke, and performance issues — so you can pinpoint the cause with confidence. This is the central hub — each troubleshooting post links back here, and this page links out to every diagnostic cluster.

805 Marine Diesel Mechanic provides mobile marine diesel troubleshooting and repair services throughout Ventura, Oxnard, Channel Islands Harbor, and Santa Barbara.

Schedule Marine Diesel Diagnosis

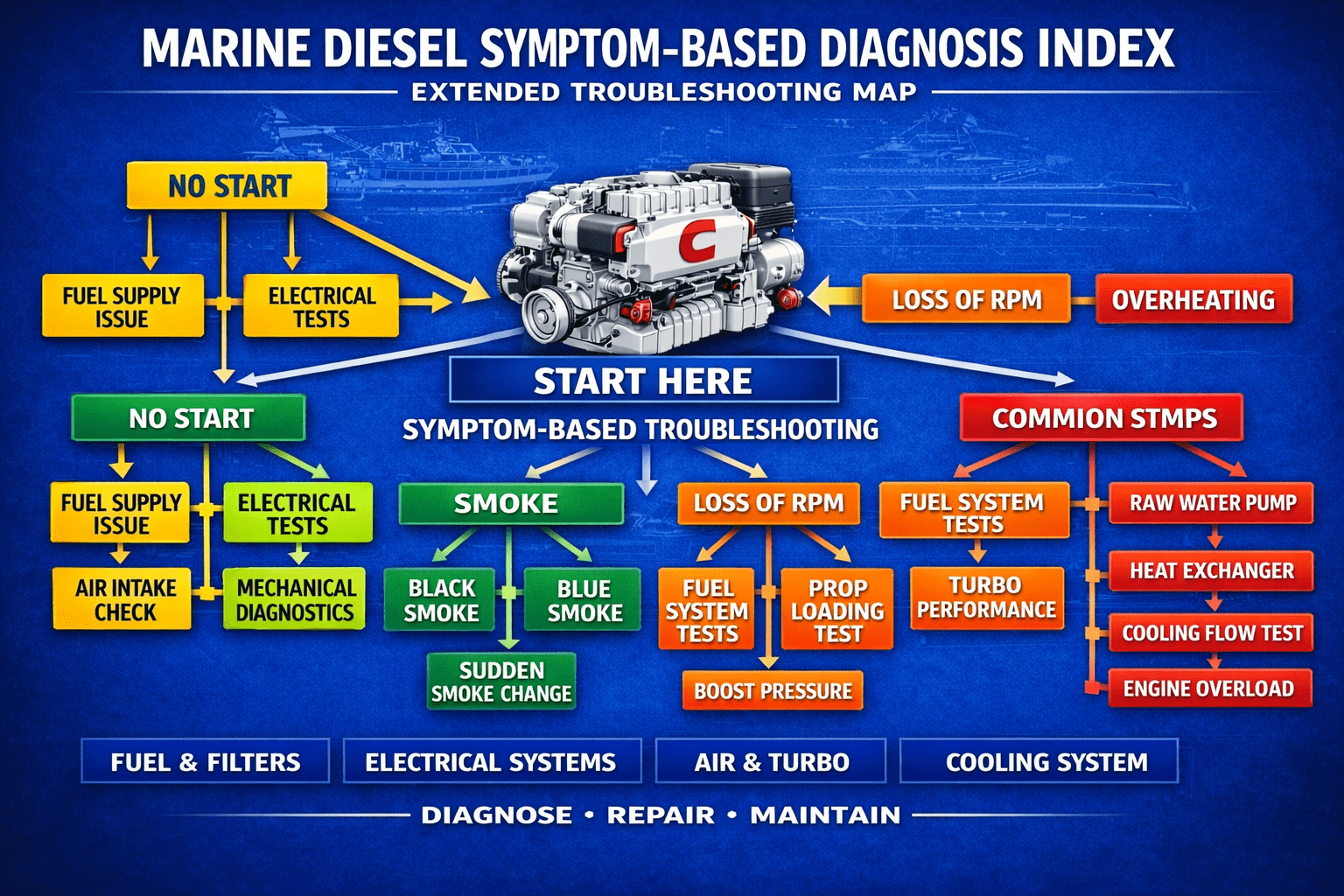

Ultimate Marine Diesel Troubleshooting Map (Symptom-Based Diagnosis Index)

Select your primary symptom below to follow the diagnostic pathway used by professional marine diesel technicians.

If your marine diesel engine is showing symptoms like hard starting, smoke, loss of RPM, overheating, or poor performance, this guide helps you diagnose the problem using a structured, symptom-first approach.

This troubleshooting map connects real-world engine symptoms to the most likely systems involved — allowing faster diagnosis, fewer unnecessary repairs, and more accurate maintenance decisions.

This page serves as the central diagnostic hub for the entire 805 Marine Diesel Mechanic troubleshooting system.

Start Here: Choose Your Marine Diesel Symptom below to open the matching diagnosis center and step-by-step guides

🚫 Engine Will Not Start (No Start Diagnosis)

🖥️ Computerized Marine Diesel Engine Survey Diagnosis Center

⚡ Low Power / Loss of RPM

Overheating Problems

Fuel Contamination & Filtration Issues

Turbo & Air System Problems

⚡ Electrical & Starting Problems

Smoke Problems (Combustion Diagnosis)

How This Troubleshooting System Works

Unlike traditional troubleshooting guides organized by engine components, this system starts with symptoms — the way real problems appear on the water.

Identify the symptom first.
Follow the diagnostic cluster.
Narrow down root causes logically.
Avoid unnecessary parts replacement.

Professional Marine Diesel Diagnostics in Ventura, Oxnard & Santa Barbara

805 Marine Diesel Mechanic provides professional mobile diagnostics, computerized engine surveys, and advanced troubleshooting for inboard diesel engines throughout Ventura, Channel Islands Harbor, Oxnard, and Santa Barbara.

Schedule Professional Diagnosis

🔧 Advanced Diagnosis & Major Decisions

Master Marine Diesel Turbocharger Troubleshooting Guide:

How to Diagnose Marine Diesel Engine Problems

Professional troubleshooting follows a structured process:

Identify primary symptom (smoke, overheating, power loss, starting issues)
Determine when the issue occurs (startup, idle, cruise, under load)
Check fuel, air, cooling, and mechanical systems systematically
Avoid replacing parts before confirming root cause

This troubleshooting system reflects real-world diagnostic workflows used by trained technicians servicing marine diesel engines across Ventura, Channel Islands Harbor, and Santa Barbara.

Professional Computerized Diagnostic Surveys (Advanced Testing)

While many marine diesel issues can be identified through structured troubleshooting and symptom analysis, some problems require deeper investigation using professional diagnostic tools and real-world testing.

When basic troubleshooting does not isolate the root cause, trained technicians move into advanced diagnostic procedures. These may include computerized engine diagnostics, live data monitoring, sea trial performance testing, and detailed mechanical inspections within the engine room. By combining electronic analysis with hands-on evaluation, it becomes possible to identify issues that are not visible through standard checks alone.

Professional marine diesel diagnostic surveys are especially valuable when engines exhibit intermittent faults, reduced performance, unexplained alarms, or when a vessel is being evaluated prior to purchase. These advanced testing methods help eliminate guesswork and provide clear, data-driven insights into engine condition and system performance.

To see how this structured troubleshooting methodology translates into real-world diagnostics, view our detailed case study:

Related Marine Diesel Resources

Marine Diesel Troubleshooting – Expert Quick Diagnosis FAQ

These expert quick answers are based on real-world marine diesel diagnostics used by trained technicians in Ventura, Oxnard, Channel Islands Harbor, and Santa Barbara. Start with the symptom, then follow the matching diagnosis center.

What should I check first when a marine diesel won’t start?

First check cranking speed and battery voltage. If cranking is slow, start with the electrical system. If cranking is normal but the engine won’t fire, check fuel delivery, air intrusion, and filter restriction.

Related: Fuel System Diagnosis Center • Electrical & Starting System Diagnosis Center

Engine turns over but no smoke from exhaust — what does that mean?

No smoke while cranking usually indicates fuel is not being injected. Common causes include air in the fuel system, shutoff issues, lift pump failure, or severe restriction.

Why does my marine diesel lose RPM under load?

Loss of RPM under load is usually caused by air restriction, boost loss, fuel restriction, or engine overload. Boost pressure testing is often the fastest way to narrow it down.

What does black smoke under throttle usually indicate?

Black smoke under load typically means insufficient air or excessive fuel. Check turbocharger performance, aftercooler condition, intake restriction, and exhaust backpressure.

Overheating at cruise but not idle — what’s the likely cause?

When overheating occurs only under load, suspect raw water restriction, impeller wear, heat exchanger fouling, or engine overload.

How do professional marine diesel technicians diagnose engine problems?

Professionals diagnose by identifying the primary symptom, determining when it occurs, checking fuel, air, cooling, and mechanical systems logically, and confirming findings with performance testing or computerized diagnostics.

When should computerized diagnostics be used?

Use computerized diagnostics when alarms or derates are present, the problem is intermittent, electronic engines are involved, or manual testing does not isolate the issue.

How can I tell cooling system failure from engine overload?

Cooling failure shows reduced water flow and steadily rising temperature. Engine overload typically shows inability to reach rated RPM, heavy smoke under load, and elevated exhaust temperature.

What are the signs of diesel fuel contamination?

Common signs include repeated filter clogging, loss of RPM, hard starting, and water or debris in separator bowls.

What does blue smoke on a turbocharged marine diesel mean?

Blue smoke usually indicates oil burning. On turbo engines, inspect turbo oil drain, crankcase ventilation, and excessive blow-by before assuming internal engine damage.
