Marine Diesel Fuel System Problems:

Marine Diesel Fuel System Diagnosis Center

Fuel system failures are the leading cause of no-start conditions, power loss, injector damage, and expensive marine diesel breakdowns.

With over 30 years of hands-on marine diesel diagnostic experience, 805 Marine Diesel Mechanic specializes in identifying and correcting fuel contamination, air intrusion, restriction issues, injector failures, and high-pressure system faults throughout Ventura, Oxnard, Channel Islands Harbor, and Santa Barbara.

Schedule Fuel System Diagnostic Inspection

Start With the Symptom

Engine Cranks But Won’t Start

• Primary filter restriction (Racor / Fleetguard / DAVCO)
• Air intrusion in suction line
• Weak or failed lift pump
• Fuel shutoff solenoid malfunction

Before assuming electrical failure, follow our Master Marine Diesel Troubleshooting Guide for symptom-based diagnostics.

Loss of Power Under Load

• Clogged primary or secondary filters
• Collapsing suction hose
• Restricted tank pickup tube
• Transfer pump pressure loss

Power loss is often misdiagnosed as turbo or cooling problems. Visit our Turbo System Diagnosis Center or Cooling System Diagnosis Center for comparison symptoms.

Black Smoke Under Load

• Over-fueling from injector wear
• Improper atomization
• Restricted air supply
• Excessive fuel delivery pressure

Learn more in our Smoke & Combustion Diagnosis Center.

Understanding the Marine Diesel Fuel System

Modern marine diesel engines use both low-pressure and high-pressure fuel circuits.

• Fuel tank pickup & shutoff valves
• Primary filtration (Racor, Fleetguard, DAVCO)
• Lift / transfer pump
• Secondary filtration
• High-pressure pump (common rail systems operate up to 35,000 PSI)
• Injectors
• Return circuit

Contaminated fuel or air intrusion anywhere in this chain can cause cascading failures.

Fuel System Protection & Upgrade Options

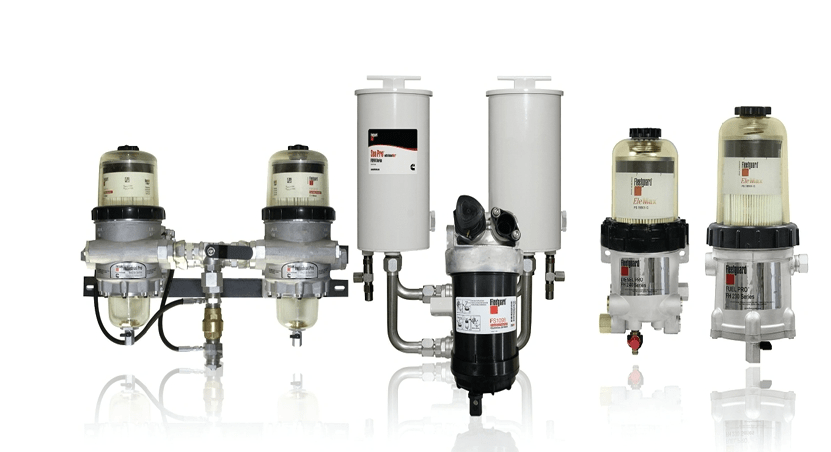

• Dual Racor manifold filtration systems
• Fleetguard high-efficiency filtration upgrades
• Vacuum gauge installation for early restriction detection
• Fuel polishing systems
• Remote filter relocation for service accessibility
• Tank inspection and contamination removal
• Clear bowl water detection monitoring

We also service Perkins and Yanmar fuel systems throughout Ventura County.

Request Fuel System Upgrade Consultation

Why Professional Fuel Diagnostics Matter

Common rail marine engines operate at extreme pressures. Even small amounts of water or debris can destroy injectors and high-pressure pumps.

Air intrusion can mimic electrical failures. Improper bleeding procedures can damage fuel pumps. Guessing costs money.

With 30+ years of marine diesel diagnostic experience, we test — we don’t guess.

Ventura & Channel Islands Harbor Marine Fuel Specialist

805 Marine Diesel Mechanic provides mobile marine diesel fuel diagnostics and system upgrades throughout:

• Ventura Harbor
• Channel Islands Harbor
• Oxnard
• Santa Barbara

We specialize exclusively in marine diesel engines.

Related Diagnostic Centers

• Electrical & Starting System Diagnosis Center
• Cooling System Diagnosis Center
• Turbo System Diagnosis Center
• Computerized Marine Engine Survey Diagnostics Center

Fuel System Problems Are the Root of Most Marine Diesel Failures

The marine diesel fuel system is the single most critical system in engine operation. If fuel delivery is unstable, contaminated, restricted, or mixed with air, the engine cannot operate correctly — regardless of how healthy the rest of the engine may be.

What makes fuel system problems especially dangerous is that they often mimic other systems. A fuel restriction can look like a turbo problem. Air intrusion can look like an electrical issue. Contaminated fuel can resemble injector failure or even internal engine damage. That is why fuel system diagnosis must always be approached as a complete system evaluation.

Advanced Fuel System Failure Patterns

• Hard start + loss of prime: air intrusion or suction leak
• Loss of power under load: restriction, collapsing hose, or pickup blockage
• Surging at cruise: unstable fuel delivery or aeration
• Black smoke under load: over-fueling, injector issues, or airflow imbalance
• Shutdown while running: fuel interruption or severe restriction

Cross-reference with:
Air in Fuel System,
Engine Shutting Down, and
Engine Surging.

The “Fuel First” Rule

Before diagnosing turbochargers, injectors, or internal engine components, always confirm that the fuel system is delivering:

• Clean fuel
• Stable pressure
• Air-free supply
• Proper volume under load

Skipping this step is one of the most common reasons unnecessary parts are replaced.

Where Fuel Systems Fail Most Often

• Primary filtration (Racor systems)
• Suction-side hoses and fittings
• Lift and transfer pumps
• Tank pickup tubes
• Injector performance degradation

Deep dive:
Fuel vs Air Restriction,
Loss of Power Diagnosis,
Won’t Reach RPM.

Why Fuel Problems Cascade Into Bigger Failures

Fuel system issues rarely stay isolated. A restriction can increase injector stress. Air intrusion can damage pumps. Contaminated fuel can destroy injectors and high-pressure systems. What starts as a small maintenance issue can quickly turn into a major repair if not addressed early.

This is especially critical on modern common rail engines, where high-pressure fuel systems operate at extreme tolerances and are highly sensitive to contamination and instability.

Marine Diesel Fuel System Diagnosis — FAQ

805 Marine Diesel Mechanic provides advanced marine diesel fuel system diagnostics, contamination correction, and performance troubleshooting throughout Ventura, Oxnard, Channel Islands Harbor, and Santa Barbara.
