805 Marine Diesel Mechanic | Premium Marine Engine Survey

M/V LE COMPROMIS

1995 Princess • Approximately 60 FT • Twin MAN D2848LE401 Marine Diesel Engines

Professional Marine Engine Survey

Survey Conducted By:
Jeff Lendall & Sons
805 Marine Diesel Mechanic

This comprehensive survey documents the condition and operational performance of the twin MAN D2848LE401 marine diesel engines, Twin Disc MG-5114A marine gears, DEUTZ generator, cooling systems, fuel and lubrication systems, exhaust components, propulsion drivetrain, engine mounts, and bow thruster aboard M/V LE COMPROMIS.

The inspection includes visual findings, sea trial observations, operational testing, cooling-system pressure testing, corrective maintenance recommendations, and preliminary repair estimates.

Twin MAN D2848LE401
Twin Disc MG-5114A
DEUTZ Generator
Sea Trial
Cooling Pressure Tests
Repair Estimates

The report distinguishes satisfactory operating performance from observed maintenance deficiencies requiring corrective work.

Executive Marine Engine Survey Summary

Based on my investigation, visual inspection, operational testing, cooling-system pressure testing, and sea trial, my opinion is that the overall machinery condition is:

OVERALL MACHINERY RATING

GOOD — WITH DEEP-DIVE MAINTENANCE AND CORRECTIVE REPAIRS RECOMMENDED

Both MAN D2848LE401 engines demonstrated favorable starting characteristics, stable coolant temperatures, strong oil pressure, satisfactory turbocharger response, and smooth operation during the sea trial.

Both Twin Disc MG-5114A marine gears operated smoothly in forward and reverse, without abnormal clunking or excessive vibration.

The most significant deficiencies involve leaking seawater pumps, deteriorated cooling hoses and clamps, crimped fuel, oil and transmission lines, worn belts and idler pulleys, port-engine exhaust-manifold gasket leakage, exhaust hoses, bow-thruster bearings, propulsion cutlass bearings, and saltwater-damaged front motor mounts on the port engine.

Main Engines

GOOD

Satisfactory sea trial operation

Marine Gears

GOOD

Smooth forward and reverse engagement

Maintenance

REQUIRED

Multiple corrective repairs identified

Survey Priority: Correct the identified seawater leaks, deteriorated hoses and lines, exhaust deficiencies, and saltwater-damaged engine mounts. Drivetrain and bow-thruster bearing movement also require corrective attention.

Vessel Identification

Vessel Name	M/V LE COMPROMIS
Manufacturer	Princess
Model Year	1995
Length	Approximately 60 FT
Main Engines	Twin MAN D2848LE401
Marine Gears	Twin Disc MG-5114A
Generator	DEUTZ F2M 1008

Main Engine Specifications

PORT MAN ENGINE

Manufacturer: MAN

Model: D2848LE401

Configuration: Inboard Marine Diesel

Rated Horsepower: 671 HP

Recorded Hours: 1,079

Marine Gear: Twin Disc MG-5114A

WOT RPM: Approximately 2100

WOT Oil Pressure: Approximately 88 PSI

Operating Assessment: Satisfactory

Additional Finding: Front motor mounts damaged by saltwater exposure. Replacement recommended.

STARBOARD MAN ENGINE

Manufacturer: MAN

Model: D2848LE401

Configuration: Inboard Marine Diesel

Rated Horsepower: 671 HP

Recorded Hours: 1,080

Marine Gear: Twin Disc MG-5114A

WOT RPM: Approximately 2100

WOT Oil Pressure: Approximately 86 PSI

Operating Assessment: Satisfactory

DEUTZ Marine Generator

Generator Identification

Manufacturer: DEUTZ

Year: 1995

Model: F2M 1008

Serial Number: 8130707

Recorded Hours: 287

Rated Output: 15.5 kW

Generator Maintenance Finding

The DEUTZ generator operated during inspection. However, leakage was observed at the seawater-pump seal area.

Recommendation: Replace the seawater pump and service the associated belts and idler pulleys.

Mechanical System Condition Matrix

System	Survey Finding	Status
Main Engine Operation	Both engines operated satisfactorily	GOOD
Fuel Filtration	Racor Twin Turbine 900 assemblies serviceable; no water observed	GOOD
Fuel, Oil and Transmission Lines	Crimped lines require replacement; approximately 10–11 per engine identified	REPLACE
Lubrication	Strong oil pressure under load	GOOD
Cooling Performance	Normal temperatures during testing	GOOD
Seawater Pumps	Leakage at both MAN pumps and DEUTZ pump	REPLACE
Cooling Hoses / Clamps	Most require replacement	REPLACE
Turbochargers	Satisfactory spool-up and minimal smoke	GOOD
Port Marine Gear	Smooth forward and reverse operation	GOOD
Starboard Marine Gear	Smooth forward and reverse operation	GOOD
Belts / Idler Pulleys	Both main engines and generator require service	REPLACE
Port Exhaust Manifold	Water leakage at gasket area	REPAIR
Exhaust Hoses / Clamps	Both main engines require replacement	REPLACE
Port Engine Front Mounts	Saltwater damage observed	REPLACE
Propulsion Cutlass Bearings	Movement observed	REPLACE
Bow Thruster	Operational; shaft play observed	BEARING SERVICE
Steering / Rudders	Very good	GOOD

MAN D2848LE401 Operational Findings

Cold Starting: Both engines started promptly without excessive cranking. A small amount of exhaust smoke was present at startup and dissipated as the engines warmed.

Engine Synchronization: Both engines operated in synchronization without evidence of excessive load imbalance.

Oil Pressure: Approximately 88 PSI port and 86 PSI starboard were recorded during WOT testing.

Cooling Performance: Both engines maintained normal coolant temperatures during cruise and full-load operation.

Turbocharger Performance: Turbocharger response was observed beginning at approximately 1300 RPM. Both engines accelerated satisfactorily with minimal exhaust smoke.

Marine Gear Operation: Both Twin Disc MG-5114A gears engaged smoothly in forward and reverse without abnormal clunking or excessive vibration.

Wide-Open Throttle: Both engines reached approximately 2100 RPM. Confirmation against the manufacturer’s specified rated WOT RPM and the vessel’s propeller loading is recommended.

Detailed Visual Engine Inspection

Fuel Filtration: Racor Twin Turbine Series 900 filter assemblies were inspected. No water was observed and the assemblies appeared serviceable.

Marine Gears: Both Twin Disc MG-5114A marine gears operated satisfactorily during the sea trial.

Seawater Pumps: Leakage was observed at the seal/weep-hole areas on both MAN seawater pumps and the DEUTZ generator seawater pump. Replacement of all three pumps is recommended.

Heat Exchangers: Performance appeared satisfactory and coolant temperatures remained within normal operating range.

Engine Oil Coolers: Inlet and outlet temperatures appeared within expected operating parameters.

Cooling-System Pressure Testing: Both MAN engines and the DEUTZ generator cooling systems were pressure tested to approximately 25 PSI. All three systems passed.

Cooling Hoses and Clamps: Most cooling-system hoses and associated clamps require replacement due to their observed condition.

Fuel, Oil and Transmission Lines: Crimped lines require replacement. Approximately 10–11 lines per engine were identified in the updated inspection notes.

Belts and Idler Pulleys: Replacement is recommended on both MAN engines and the DEUTZ generator.

Port Exhaust Manifold: Water leakage was observed at the port-engine exhaust-manifold area. Removal of the manifold and replacement of leaking gaskets is recommended.

Exhaust Hoses and Clamps: Replacement is recommended on both MAN engines.

Port Engine Front Motor Mounts: Saltwater-related damage was observed. Replacement of the affected front motor mounts is recommended, followed by inspection of mounting hardware and engine alignment.

Propulsion Cutlass Bearings: Movement was observed in the shaft/cutlass-bearing area. Bearing replacement and inspection of shaft condition, couplings, and alignment are recommended.

Bow Thruster: The bow thruster operated satisfactorily during docking. Shaft play was observed during haul-out. Bearing replacement and zinc-anode service are recommended.

Marine Engine Sea Trial Report

Test	Observed Result
Cold Start	Prompt starting on both engines
Initial Exhaust Smoke	Small amount at startup; dissipated after warm-up
WOT RPM	Approximately 2100 RPM on both engines
Port Oil Pressure	Approximately 88 PSI at WOT
Starboard Oil Pressure	Approximately 86 PSI at WOT
Turbocharger Response	Spool-up around 1300 RPM
WOT Exhaust Smoke	Very minimal smoke observed
Coolant Temperatures	Within normal operating limits
Cooling Water Discharge	Strong and consistent
Forward Gear Engagement	Smooth on both marine gears
Reverse Gear Engagement	Smooth on both marine gears
Abnormal Vibration	No excessive vibration observed
Bow Thruster	Operational during docking

Sea Trial Assessment: Both MAN D2848LE401 engines demonstrated generally satisfactory operating characteristics. The significant findings are maintenance-related deficiencies requiring corrective work rather than an observed failure of either main engine or marine gear.

Sea Trial Video — MAN D2848LE401 Wide-Open-Throttle Test

Both MAN engines operated smoothly during WOT testing, reaching approximately 2100 RPM with very little exhaust smoke observed.

Survey Observation: Satisfactory engine response, synchronization, and minimal exhaust smoke during full-load testing.

Inspection Video — Belts and Idler Pulleys

Inspection footage documenting the condition of the belt and pulley components. Replacement is recommended on both MAN engines and the DEUTZ generator.

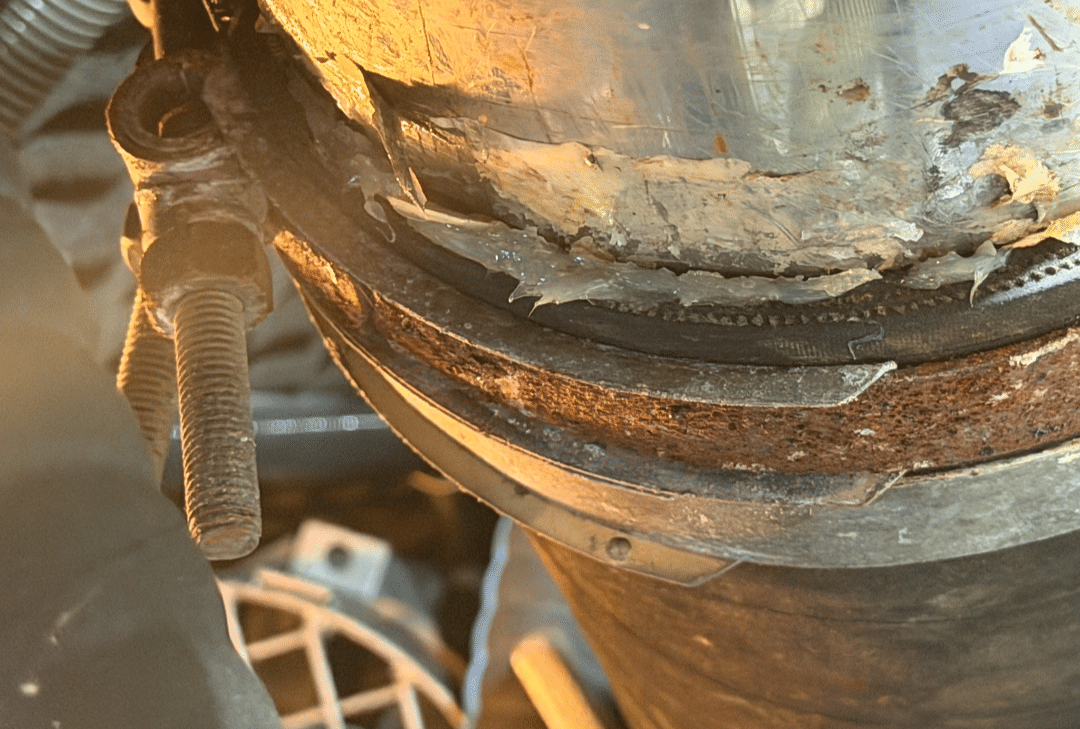

Exhaust Hoses and Hose Clamps — Replacement Required

Both MAN engines require replacement of deteriorated exhaust hoses and associated clamps.

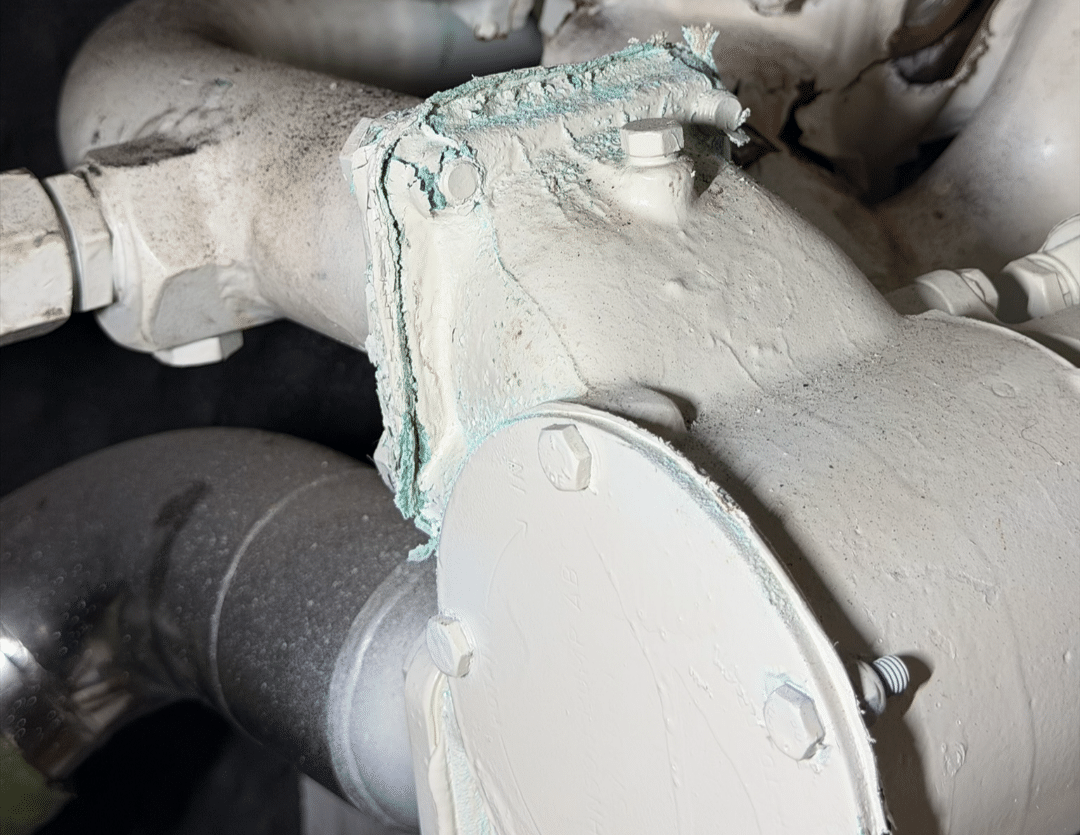

MAN Seawater Pump — Seal Leakage

Evidence of seawater leakage at the pump seal area. Both MAN main-engine seawater pumps are recommended for replacement.

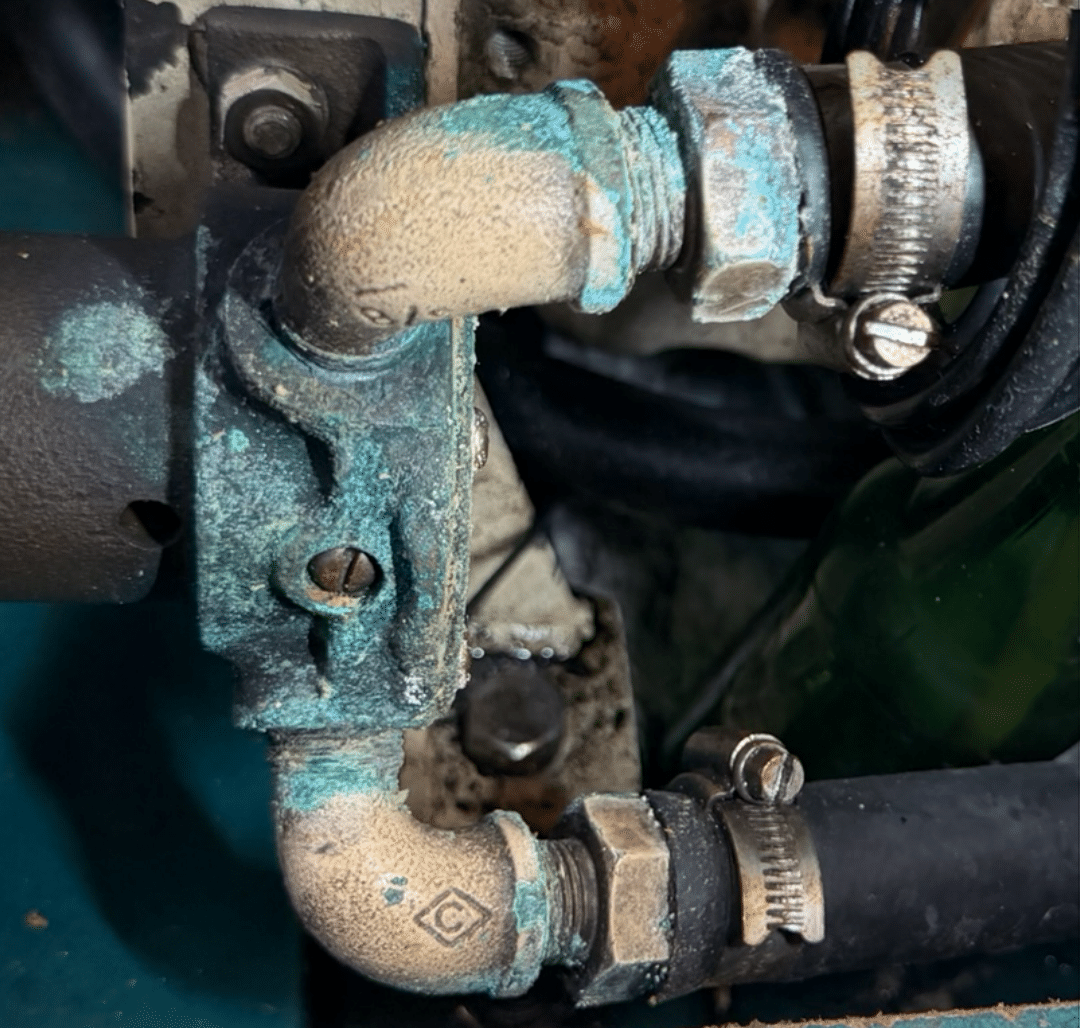

DEUTZ Generator Seawater Pump — Seal Leakage

Leakage was observed at the DEUTZ generator seawater-pump seal. Replacement is recommended.

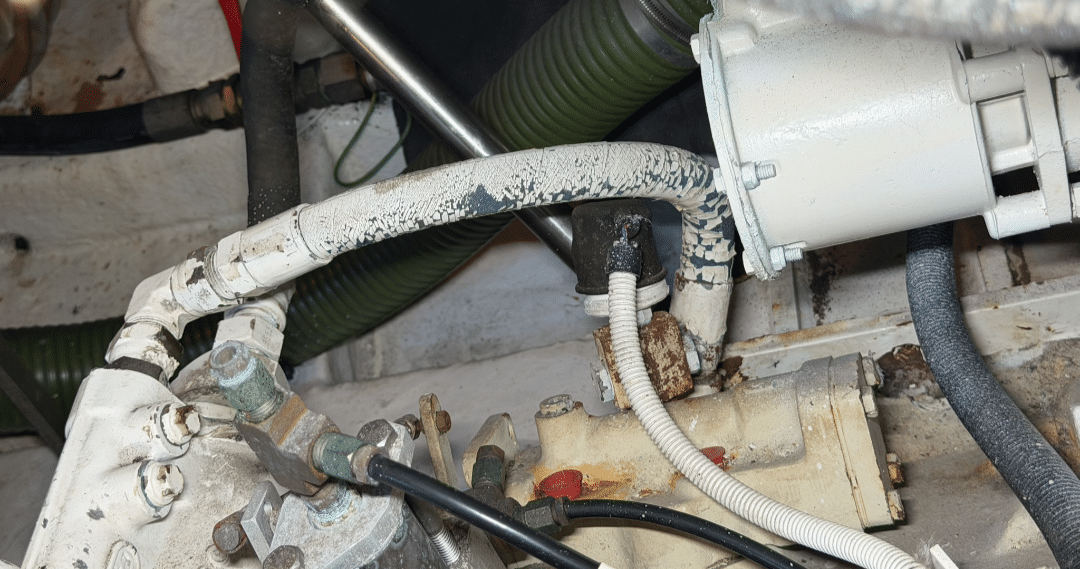

Fuel, Oil and Transmission Lines — Replacement Required

Crimped fuel, oil, and marine-gear transmission lines were identified for replacement during the visual inspection.

Updated Survey Finding: Approximately 10–11 lines per engine require replacement. Replacement assemblies should be properly specified for their individual fuel, lubrication, or transmission applications.

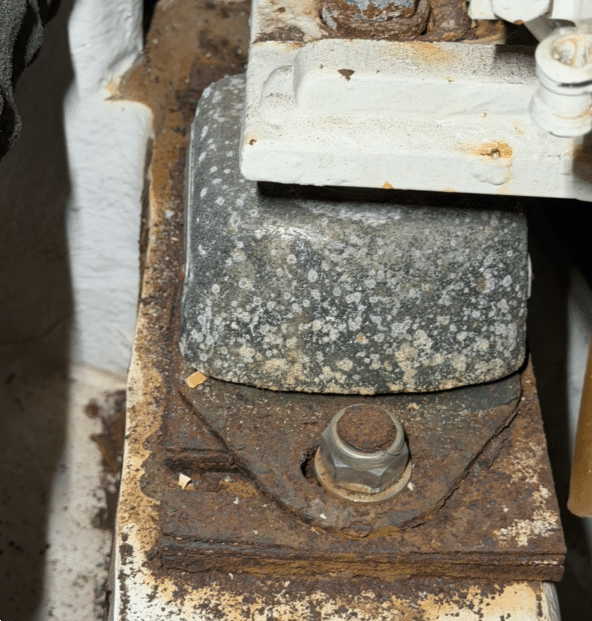

Port MAN Engine — Saltwater-Damaged Front Motor Mount

The front motor mounts on the port MAN engine were identified as damaged due to saltwater exposure. Replacement of the affected mounts is recommended.

Corrective Action Required: Replace the damaged port-engine front motor mounts. Inspect the mounting brackets, fasteners, support structure, and surrounding areas for additional corrosion. Verify engine and marine-gear alignment following replacement.

MAN D2848LE401 Marine Engine Survey Summary

Based on the visual inspection, operational testing, sea trial, and cooling-system pressure tests, both MAN D2848LE401 engines demonstrated satisfactory overall mechanical operation.

Port MAN Engine

Engine Hours: 1,079

WOT: Approximately 2100 RPM

Oil Pressure: Approximately 88 PSI

Coolant Temperatures: Normal

Exhaust Smoke: Minimal

Operating Condition: Satisfactory

Starboard MAN Engine

Engine Hours: 1,080

WOT: Approximately 2100 RPM

Oil Pressure: Approximately 86 PSI

Coolant Temperatures: Normal

Exhaust Smoke: Minimal

Operating Condition: Satisfactory

Both Twin Disc MG-5114A marine gears operated smoothly in forward and reverse without abnormal engagement noise or excessive vibration.

The major concerns involve leaking seawater pumps, deteriorated cooling hoses and clamps, crimped fuel, oil and transmission lines, port-engine exhaust-manifold leakage, exhaust hoses, belts and idler pulleys, bow-thruster bearings, propulsion cutlass bearings, and saltwater-damaged port-engine front motor mounts.

Laboratory Oil Analysis: Laboratory reports for this vessel were not included in the supplied survey material. Accordingly, this report does not assign a laboratory pass/fail determination to the main engines, marine gears, or generator.

Recommended Corrective Maintenance

1. Replace Both MAN Seawater Pumps

Seawater leakage was observed at the pump seal/weep-hole areas. Replace both pumps and inspect associated hoses, clamps, and mounting components.

2. Replace DEUTZ Generator Seawater Pump

Replace the leaking generator seawater pump and inspect associated connections.

3. Replace Cooling-System Hoses and Clamps

Replace deteriorated cooling-system hoses and associated clamps on both MAN engines.

4. Replace Crimped Fuel, Oil and Transmission Lines

Approximately 10–11 lines per engine were identified for replacement. Install properly specified marine-rated assemblies and fittings for each application.

5. Bow-Thruster Bearing and Zinc Service

Replace worn bearing components and service the zinc anodes due to shaft movement observed during haul-out.

6. Replace Belts and Idler Pulleys

Replace the belts and idler pulleys on both MAN engines and the DEUTZ generator.

7. Port MAN Exhaust-Manifold Gaskets

Remove the port-engine exhaust manifold, inspect the sealing surfaces, and replace the leaking gaskets.

8. Replace Exhaust Hoses and Clamps

Replace the identified exhaust hoses and clamps on both MAN engines.

9. Propulsion Cutlass Bearings

Replace the worn cutlass bearings and inspect shaft condition, coupling alignment, and related drivetrain components.

Important: This work is recommended but excluded from the financial estimate below.

10. Replace Port Engine Front Motor Mounts

Replace the saltwater-damaged front motor mounts on the port MAN D2848LE401 engine. Inspect surrounding mounting components for corrosion and verify engine alignment after installation.

Important: Motor-mount replacement is a newly identified corrective item and is not included in the existing itemized repair subtotal.

Itemized Marine Engine Repair Estimate

1995 Princess 60 FT — M/V LE COMPROMIS

Main Engines: Twin MAN D2848LE401

Marine Gears: Twin Disc MG-5114A

Generator: DEUTZ F2M 1008

Mechanic Labor Rate: $175 per hour

Estimate Type: Preliminary corrective maintenance and repair allowance

Repair Description	Labor	Parts / Materials	Estimated Total
MAN Seawater Pumps — Both Engines	6 hrs	$3,000–$4,000	$4,050–$5,050
DEUTZ Generator Seawater Pump	2 hrs	$900–$1,400	$1,250–$1,750
Cooling Hoses and Clamps — Both Engines	11 hrs	$2,350–$3,350	$4,275–$5,275
Crimped Fuel, Oil and Transmission Lines	8 hrs	$3,000–$3,800	$4,400–$5,200
Bow-Thruster Bearings and Zincs	Subcontract	Included	$2,000–$4,000
Belts and Idler Pulleys — All Three Engines	6 hrs	$800–$1,200	$1,850–$2,250
Port MAN Exhaust-Manifold Gasket Replacement	8 hrs	$600–$1,000	$2,000–$2,400
Exhaust Hoses and Clamps — Both Engines	10 hrs	$1,000–$2,000	$2,750–$3,750
EXISTING REPAIR SUBTOTAL	51 hrs	Parts Included	$22,575–$29,675

Labor Calculation: 51 mechanic hours × $175/hour = $8,925. This labor is already included in the individual repair totals and must not be added again. Bow-thruster work is included as a separate subcontract allowance.

Additional Motor-Mount Repair: Replacement of the saltwater-damaged port-engine front motor mounts is recommended. A parts-and-labor allowance has not yet been established and is therefore not included in the subtotal above.

Fuel, Oil and Transmission Line Scope: The updated inspection identifies approximately 10–11 lines per engine. The existing $4,400–$5,200 allowance has been retained from the original estimate and should be confirmed against the final line count, hose specifications, and fabrication requirements.

Final Projected Repair Costs

Budget Category	Low Estimate	High Estimate
Existing Corrective Mechanical Repairs	$22,575	$29,675
Haul-Out and Yard Charges	$3,000	$5,000
Contingency — 15% of Existing Repairs	$3,386	$4,451
EXISTING PROJECTED COST	$28,961	$39,126

EXISTING SURVEY REPAIR ALLOWANCE

$29,000–$39,000

Includes previously itemized repairs, estimated haul-out charges, and contingency.

Important Budget Qualification: The $29,000–$39,000 allowance does not include replacement of the damaged port-engine front motor mounts or propulsion shaft/cutlass-bearing work. The complete corrective repair budget will be higher once these additional items are priced.

Estimate Scope: Actual repair costs may vary due to parts availability, accessibility, subcontractor charges, final hose quantities, and additional deficiencies discovered during disassembly.

Recommended Repair Priorities

Priority 1 — Seawater Leakage

Replace the two MAN seawater pumps and the DEUTZ generator seawater pump.

Priority 2 — Fuel, Oil, Cooling and Exhaust Lines

Replace deteriorated cooling hoses, crimped fuel, oil and transmission lines, and exhaust hoses and clamps.

Priority 3 — Port Engine Motor Mounts

Replace the saltwater-damaged front mounts and inspect the surrounding support structure and alignment.

Priority 4 — Exhaust Manifold

Repair the leaking port MAN exhaust-manifold gasket area.

Priority 5 — Belts and Pulleys

Replace belts and idler pulleys on both main engines and the generator.

Priority 6 — Bow Thruster

Replace worn bearings and service zinc anodes.

Priority 7 — Propulsion Bearings

Replace cutlass bearings and evaluate shaft and alignment condition under a separate repair allowance.

Final Surveyor Conclusion

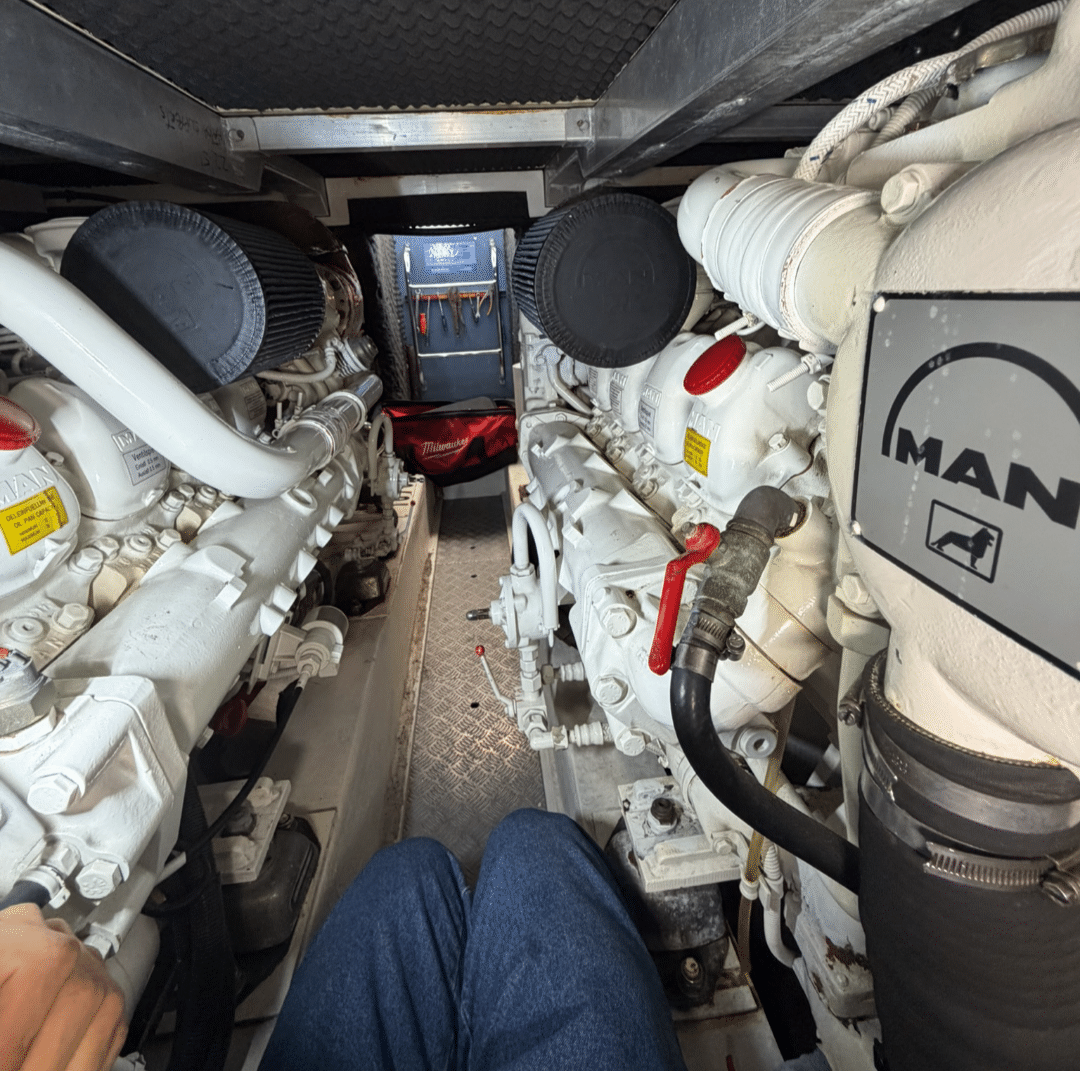

Based on the visual inspection, operational testing, cooling-system pressure testing, and sea trial, the twin MAN D2848LE401 marine diesel engines aboard M/V LE COMPROMIS demonstrated generally favorable mechanical operating characteristics.

Both engines started promptly, maintained normal coolant temperatures, developed strong oil pressure, and reached approximately 2100 RPM during WOT testing. Turbocharger response appeared satisfactory, with minimal exhaust smoke observed after warm-up.

Both Twin Disc MG-5114A marine gears operated smoothly in forward and reverse without abnormal engagement noise or excessive vibration.

The principal deficiencies involve seawater-pump seal leakage, aging cooling-system hoses and clamps, crimped fuel, oil and transmission lines, belt and idler-pulley condition, port-engine exhaust-manifold gasket leakage, exhaust hoses and clamps, bow-thruster bearing movement, propulsion cutlass-bearing wear, and saltwater damage to the port-engine front motor mounts.

Positive Machinery Findings

Both main engines demonstrated satisfactory starting, cooling, lubrication pressure, turbocharger response, and marine-gear engagement during testing.

Required Corrective Maintenance

Replace the identified seawater pumps, hoses, clamps, crimped lines, belts, pulleys, leaking exhaust-manifold gaskets, and damaged port-engine front motor mounts. Address bow-thruster bearing wear and separately evaluate propulsion cutlass bearings and shaft alignment.

OVERALL MACHINERY ASSESSMENT

GOOD — WITH DEEP-DIVE MAINTENANCE AND CORRECTIVE REPAIRS RECOMMENDED

The observed engine and marine-gear performance was generally satisfactory. However, the documented maintenance deficiencies should be corrected to improve reliability and reduce the likelihood of future mechanical failures.

EXISTING CORRECTIVE REPAIR BUDGET

$29,000–$39,000

Includes previously estimated repairs, haul-out charges, and contingency. Additional motor-mount and propulsion cutlass-bearing costs are excluded.

Professional Survey Notes & Limitations

NOTICE: The following statements limit the liability of the undersigned and set ethical standards associated with this report. Use of this report for any purpose constitutes acceptance of the following:

NOTE A: This report is issued without prejudice and is the property of the Requestor as listed above. Any use or distribution by another party is prohibited and shall render this report invalid.

NOTE B: This report is issued subject to the understanding that the undersigned surveyor is not responsible for error, omission, negligence, or misstatement. This report is a statement of my opinion based on the conditions as I found them. It is not a warranty, express or implied.

NOTE C: This survey represents conditions observed during inspection and sea trial. Components that were concealed, inaccessible, internally damaged, or not reasonably inspectable without disassembly may contain conditions that were not visible at the time of inspection.

NOTE D: Repair estimates contained in this report are provided for general budgeting purposes and may change following component disassembly, additional inspection, parts research, laboratory findings, or discovery of additional deficiencies.

Survey Conducted By

Jeff Lendall
Owner / Marine Engine Surveyor

Jeff Lendall & Sons
805 Marine Diesel Mechanic

Professional Marine Diesel Engine Diagnostics, Mechanical Surveys, Maintenance and Repair

Call (805) 774-0637

MAN D2848LE401 Marine Engine Survey
