A Borg Warner Velvet Drive transmission is the link between engine torque and propeller thrust, so delayed engagement, slipping, harsh shifting, or burnt ATF should never be treated as a simple fluid problem until the whole driveline is checked. Start with the Master Marine Diesel Troubleshooting Guide to separate engine, transmission, shaft, propeller, cooling, and control symptoms before parts are ordered.
805 Marine Mechanic services Velvet Drive inboard and V-drive units for boats in Ventura, Oxnard, Channel Islands Harbor, and Santa Barbara. Our marine transmission service and repair process focuses on accurate diagnosis, OEM-quality parts, clean assembly, alignment, and sea-trial verification so the repair fixes the cause instead of only the symptom.
Velvet Drive Problems Are Drivetrain Problems First
A Velvet Drive may be blamed for a complaint that actually starts somewhere else. Low engine power, a fouled prop, shaft misalignment, weak mounts, cable adjustment, cooler restriction, or contaminated fluid can all create symptoms that feel like transmission failure. A trained technician checks shift linkage, fluid level and odor, cooler lines, mounts, output coupling, shaft alignment, and operating temperature before recommending a rebuild.
When the boat also has slow cranking, voltage drop, or intermittent controls, the Electrical & Starting System Diagnosis Center helps rule out electrical causes. If the engine flares RPM because power delivery is inconsistent, the Fuel System Diagnosis Center and Cooling System Diagnosis Center may be part of the same inspection.
Why Velvet Drive Units Are Trusted
The official Velvet Drive 71/72 Series transmission information describes direct drive, in-line reduction, and V-drive configurations with multiple reduction ratios and a proven cast-iron design. That serviceable layout is why many older inboard cruisers, ski boats, commercial boats, and sportfishing vessels still rely on Velvet Drive gearboxes.
Local use adds extra stress. Boats leaving Ventura Harbor, Channel Islands Harbor, or Santa Barbara Harbor may idle for long periods, shift repeatedly around docks, then run through chop toward the islands. That pattern makes clean ATF, correct cooler flow, good alignment, and smooth engagement especially important.
Common Symptoms That Need Inspection
- Delayed engagement into forward or reverse
- Slipping under throttle or RPM flare
- Whine, growl, knock, or bearing noise
- Burnt, dark, foamy, or milky transmission fluid
- Leaks at the input, output, pan, or selector shaft
- New vibration after propeller, shaft, or engine work
These symptoms should be documented before disassembly. If vibration or metal contamination suggests deeper damage, our marine engine mechanical failure diagnostics workflow helps identify whether the fault is inside the gearbox, at the coupling, or farther down the driveline.
Our Velvet Drive Service Process
Inspection comes first. We check fluid condition, linkage travel, mount condition, cooler plumbing, shaft coupling, and alignment. Pressure testing may be used when applicable. If internal damage is likely, the unit is removed, cleaned, disassembled, and inspected for worn clutch packs, steels, thrust surfaces, bearings, seals, and gear damage.

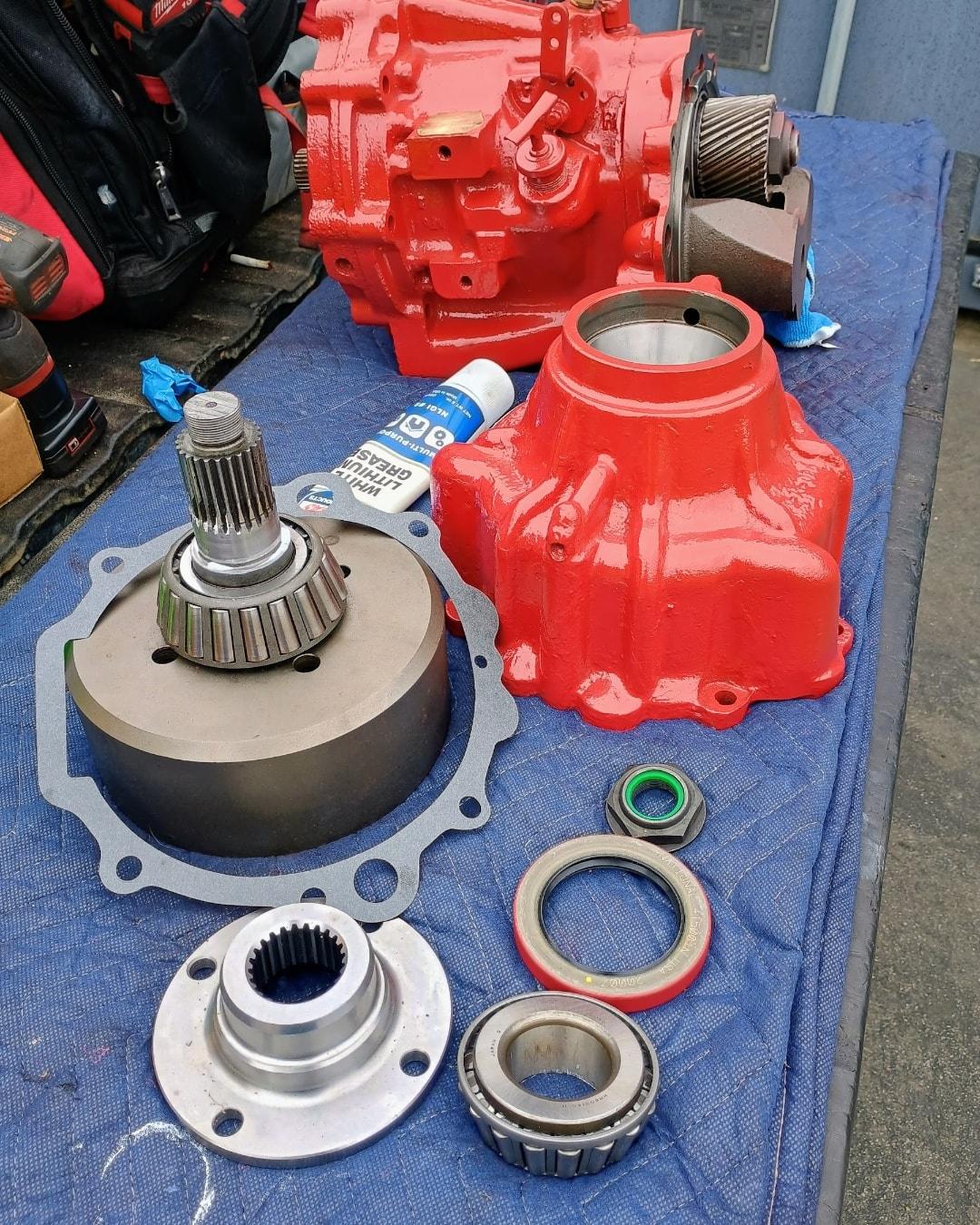

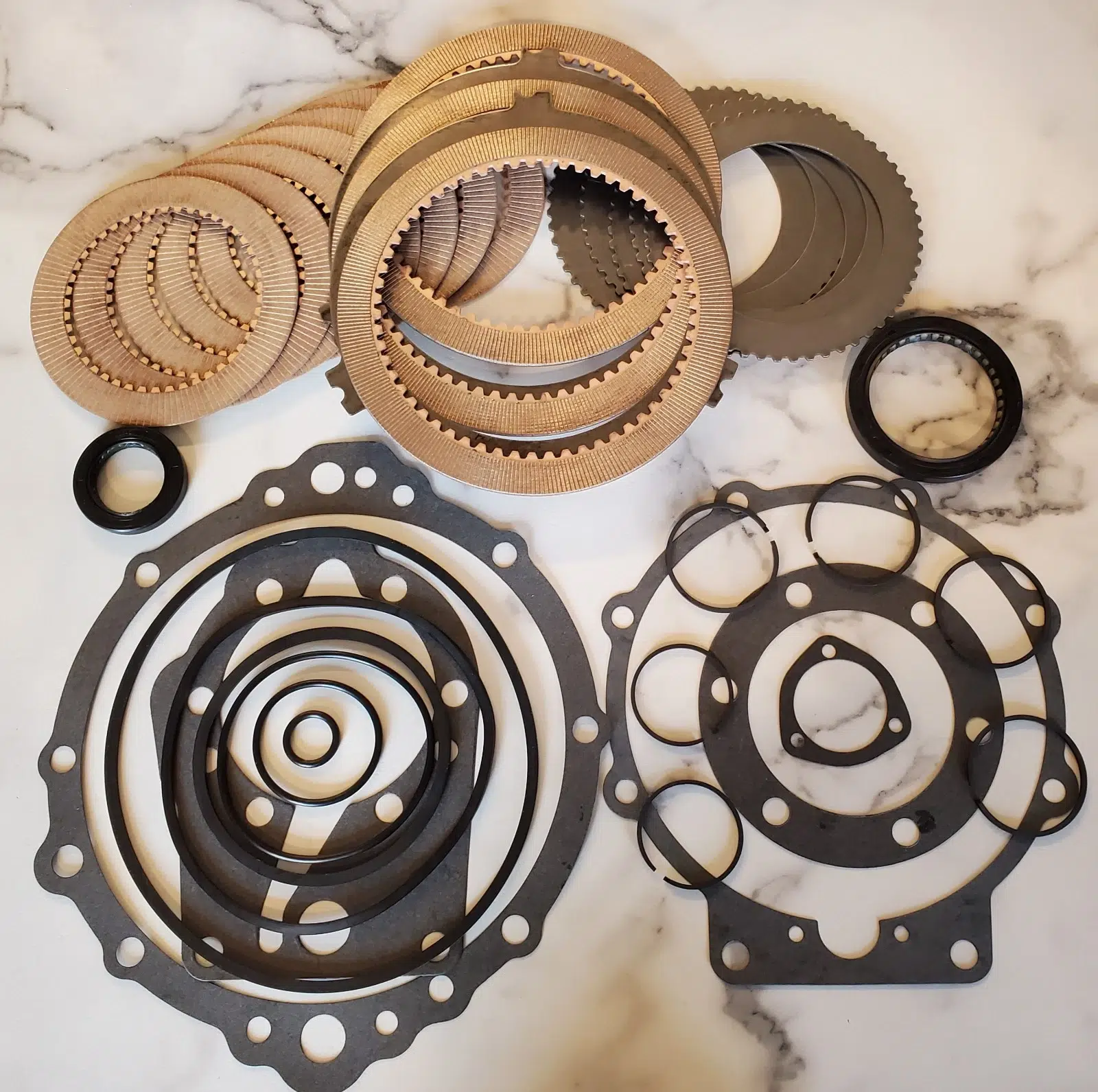

Rebuild work is measured, not rushed. Cases and hard parts are cleaned, sealing surfaces are prepared, clearances are verified, and friction plates, steels, bearings, seals, O-rings, and gaskets are replaced as needed. Marine repair safety also matters, which is why the ABYC standards list is a useful reference for builders, surveyors, and repair professionals working around propulsion, fuel, electrical, and related boat systems.
Models and Maintenance Priorities

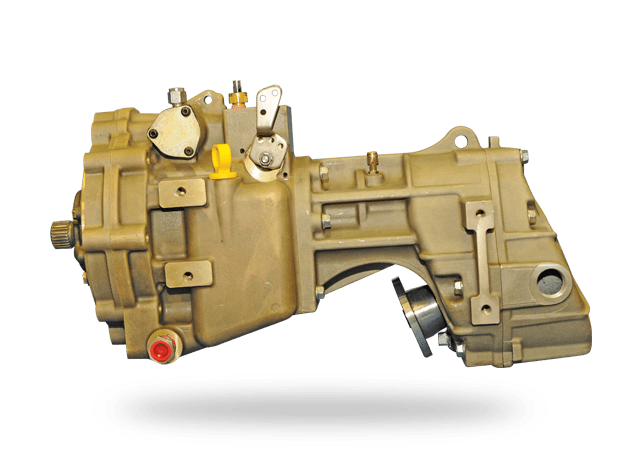

We support common Velvet Drive 71C and 72C inboard units, 10-18 style V-drive configurations, mechanical and hydraulic shift applications, and Liberty or Watersports Series models including X70, X72, and X90 variants. Always confirm the tag before ordering parts because ratio, rotation, coupling, pump orientation, and fluid capacity can change the service path.
| Check | Why It Matters | Service Action |
|---|---|---|
| ATF condition | Shows heat, water, clutch wear, or contamination | Change with model-correct fluid |
| Cooler flow | High temperature damages clutches and seals | Inspect cooler, hoses, and restriction |
| Alignment | Misalignment loads bearings and couplings | Verify after shaft, prop, or mount work |
| Shift feel | Delay or harshness can reveal pressure issues | Inspect linkage and hydraulic response |
Many Velvet Drive installations use Dexron III-type ATF, but the model tag and manual should always control the final fluid choice. If service reveals repeated slipping, burnt fluid, metal, or water intrusion, a full rebuild is usually safer than another fluid change.
Local Velvet Drive Service
For dockside or shop-based support, boat owners can start with marine services Ventura, Channel Islands marine services, or Santa Barbara marine services. 805 Marine Mechanic can inspect, service, rebuild, reinstall, align, and sea-trial Velvet Drive transmissions so your inboard boat shifts cleanly and carries power reliably.
Frequently Asked Questions
What is a Borg Warner Velvet Drive transmission?
It is a marine gearbox used between the engine and propeller shaft on many inboard boats. It uses hydraulic clutch engagement to provide smooth forward and reverse shifting.
What symptoms mean my Velvet Drive needs service?
Delayed engagement, slipping, burnt fluid, leaks, growling noise, or new vibration all deserve inspection. Early service can prevent clutch, bearing, and gear damage.
Why does my transmission delay before engaging?
Delay can come from low fluid, linkage travel, pressure loss, worn clutches, or internal seal leakage. A technician should test the system before assuming a rebuild.
What fluid does a Velvet Drive use?
Many units use Dexron III-type ATF, but the exact model controls the fluid choice. Always confirm the tag, manual, and capacity before filling.
How often should Velvet Drive fluid be changed?
Many owners service ATF seasonally or by operating hours. Severe duty, overheats, water contamination, or burnt odor require immediate inspection.
Can slipping be fixed with a fluid change?
Sometimes slipping improves if the problem is low or contaminated fluid. If clutch material is worn or pressure is low, a rebuild may be needed.
Why does shaft alignment matter?
Misalignment loads bearings, couplers, seals, and gear surfaces. Alignment should be checked after engine mount, shaft, propeller, or transmission work.
What does burnt ATF indicate?
Burnt ATF usually points to overheating, slipping clutches, low fluid, or cooler restriction. The cause should be corrected before the boat is run hard again.
What causes Velvet Drive leaks?
Leaks often come from input seals, output seals, selector shafts, gaskets, or cooler fittings. Age, heat, shaft movement, and corrosion can all contribute.
Do you service 71C and 72C units?
Yes, 805 Marine Mechanic services common 71C and 72C inboard Velvet Drive models. Ratio, rotation, and tag information should be confirmed before parts are ordered.
Do you service V-drive configurations?
Yes, we inspect and service V-drive units used in many inboard layouts. Access, alignment, cooler routing, and shaft geometry are part of the inspection.
Do you work on Liberty Series Velvet Drive transmissions?
Yes, we support Liberty and Watersports Series configurations when parts and service information are available. The model tag helps identify the correct path.
Can diagnostics be done at the dock?
Many checks can be done dockside, including fluid, linkage, leaks, mounts, and visible alignment concerns. Load-related slipping or temperature issues may require a sea trial.
When is a bench rebuild recommended?
A bench rebuild is recommended when there is slipping, metal, burnt fluid, pressure loss, bearing noise, or internal wear. It allows full inspection and controlled reassembly.
What is checked during sea trial?
Shift feel, vibration, temperature, noise, engagement, and power transfer are reviewed under real load. Sea trial confirms the repair after reinstallation.
Can a prop strike damage the transmission?
Yes, impact can transmit shock through the shaft and coupling. Alignment, shaft runout, mounts, and transmission behavior should be checked afterward.
Can a transmission cooler cause failure?
Yes, poor cooler flow can overheat ATF and damage clutches and seals. Cooler condition should be checked whenever fluid is dark or burnt.
Do you service Velvet Drive transmissions in Ventura and Oxnard?
Yes, we support boats in Ventura, Oxnard, and nearby Channel Islands Harbor. Dockside access and repair scope determine the best service plan.
Do you service boats in Santa Barbara?
Yes, Santa Barbara vessels are within the local service area. We support inspection, service, rebuild planning, alignment, and sea-trial verification.
When should I schedule Velvet Drive service?
Schedule service when shifting changes, fluid smells burnt, leaks appear, or vibration begins. Waiting can turn a minor service issue into a full rebuild.
Schedule Velvet Drive Transmission Service
If your Velvet Drive is slipping, leaking, shifting late, making noise, or showing burnt fluid, 805 Marine Mechanic can inspect the full drivetrain and build a practical repair plan for Ventura, Oxnard, Channel Islands Harbor, and Santa Barbara vessels.
