Cummins 6BTA 5.9 Marine Engine Survey x2

Cummins 6BTA5.9 Marine Engine Survey x2, servicing Channel Islands, Ventura and Santa Barbara by trained technicians at 805 Marine Diesel Mechanic

Marine Engine Survey











Conducted by : Jeff Lendall & Sons. 805 Marine Diesel Mechanic





     M/V EXSTASEA:



                     OFFICIAL#:1061972 LOA:36FT YEAR: 1996 Bayliner

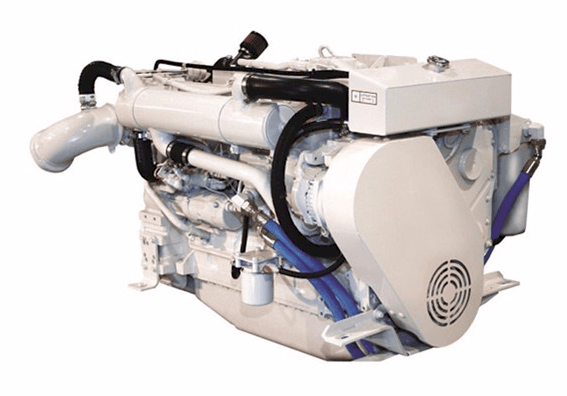

ENGINE 1:

• Engine Make: Cummins
  Engine Model: 6BTA 5.9-M2
  Engine Type: Inboard
  Power HP: 250
  Fuel Type: Diesel
  Hours: 2074
  Serial Number: 452602
  Engine Location: Port

• TRANSMISSION PORT:  Hurth Marine Transmission HSW630 A-1



ENGINE 2:

• Engine Make: Cummins

• Engine Model: 6BTA 5.9-M2

• Engine Type: Inboard

• Power HP: 250

• Fuel Type: Diesel

• Hours: 2078 on meter. Rebuilt engine 2018 undetermined hours.

• Serial Number: 4018419

• Engine Location: Starboard
• Transmission starboard:  HURTH Marine Transmission HSW630-A1



Engine Room Systems:

FUEL FILTRATION SYSTEM: Racor Twin Fuel Filter/Water Seperator 10 Micron Port & Starboard side filter assembly: Appeared serviceable, No water present.

THROTTLE & SHIFTER CONTROLS: Morse cable shifters worked properly at flybridge and Main cabin locations.

SEAWATER PUMP: Seals not leaking/no water present. adequate pressure.

TUBE-TYPE HEAT EXCHANGER: checked inlet and outlet flow temperature, within parameters

ENGINE OIL COOLER: checked inlet and outlet temperatures, all within parameters

SEAWATER PUMP OUTLET PRESSURE: adequate pressure

COOLANT LEVEL SENSOR: working properly no leaks observed.

ENGINE MOUNTS AND BED:  Main engine beds are heavy longitudinal stringers inboard and outboard. Engine Mounts Satisfactory

LUBRICATION: Oil Level indication is normal both port and starboard.

LUBE OIL PRESSURE: (WOT) engine 100% load 51 psi. port engine 50 psi starboard engine

COOLING SYSTEM TYPE: Freshwater reservoir type cooling with Seawater cooled wet exhaust, Operated satisfactory.

SEAWATER STRAINERS: 2 inch Groco bronze alloy with sight glass. Appeared serviceable. well maintained

COOLANT LEVEL: Normal levels observed. Pressurized expansion tanks on both engines to 25psi no noticeable drop in pressure. used heat sensing gun on all cooling system surfaces. operated normal.

HOSES AND CLAMPS: Double clamped where sighted.

BELTS AND PULLEYS: Belts & Pulleys condition appeared serviceable

SEACOCKS AND STRAINERS: Seawater seacocks were ball valve type. Operated smooth & satisfactory.

EXHAUST SYSTEM: Seawater cooled with risers and flexible coupling sections double clamped where sighted.

ENGINE ALARMS: Test of port and starboard low oil pressure alarm, and coolant overheat warning audible at helm station. Operated satisfactory.

ENGINE SHUT DOWN: electronic style shut off solenoid switches operated satisfactory

PACKING GLAND STYLE SHAFT SEALS: seem to have adequate lubrication.

ENGINE ALIGNMENT: Appeared Smooth & without vibration.

RUDDERS: Packing gland style, not leaking excessively appeared serviceable. no vibration.

TURBOCHARGERS: no tests performed on turbos, sounded like they spooled up around 1200 RPM and operated satisfactory

HURTH MARINE TRANSMISSIONS: Both performed adequately while shifting no excessive noise or vibration while under way.

——————————————————————————————-

SEATRIAL REPORT:

1. The engines started without excessive cranking.

2. The engine exhaust appeared normal. very minimal smoke for engines of this age.

3. The cooling water exhaust appeared adequate and normal.

4. The engine instruments operate within normal operating limits at idle, cruising speed and at wide open throttle.

5. The steering system operated normally. very responsive.

6. The throttles operated normally. no adjustment needed

7. The transmissions, both went in & out of gear smooth with no excessive noise

8. The backdown test was satisfactory.

9. both rudder linkage operated smooth while underway, no leaks detected

WOT TEST: (wide open throttle) Starboard engine smoking a little. (blue/white smoke)



Recommendations and observations:

1. Port engine turbo charger leaking oil at discharge hose, both engine turbo chargers working but should be rebuilt in the near future. (see photo below)
2. Port & Starboard transmissions currently using ATF, recommend replacing with Delo 30W oil
3. Westerbeke generator working properly but due for a complete service.
4. Starboard side engine seems to be out of alignment, recommend replacing rear motor mounts on both engines and realign propeller shafts
5. Starboard side engine mixing elbow needs to be replaced in the near future, heavily corroded
6. Port transmission shows water in the oil (see analysis below)
7. Starboard transmission shows excessive wear in the oil (see analysis below)
8. Master Marine Diesel Troubleshooting Guide – 805 Marine Diesel Mechanic

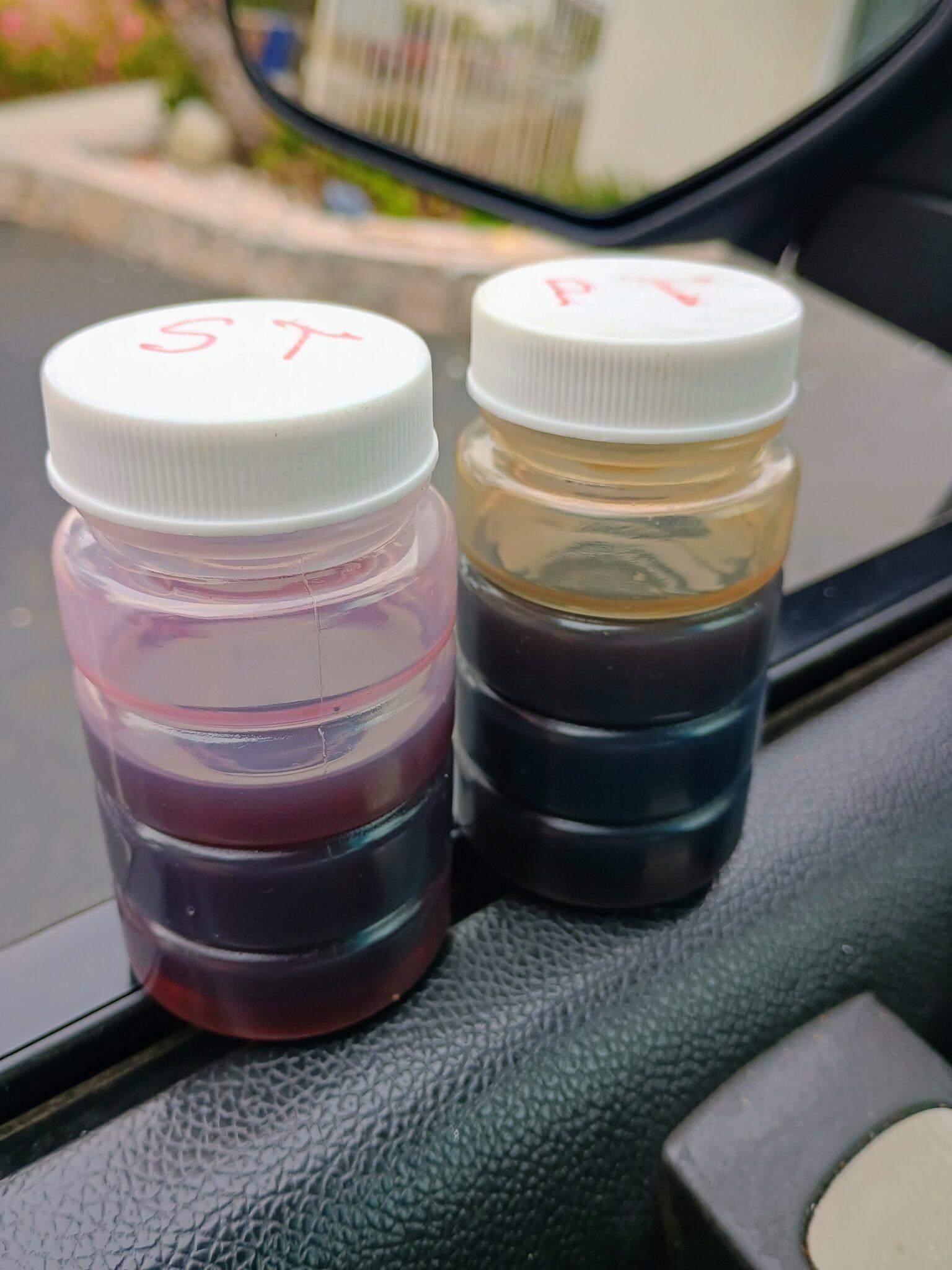

Port transmission discoloration water in oil analysis

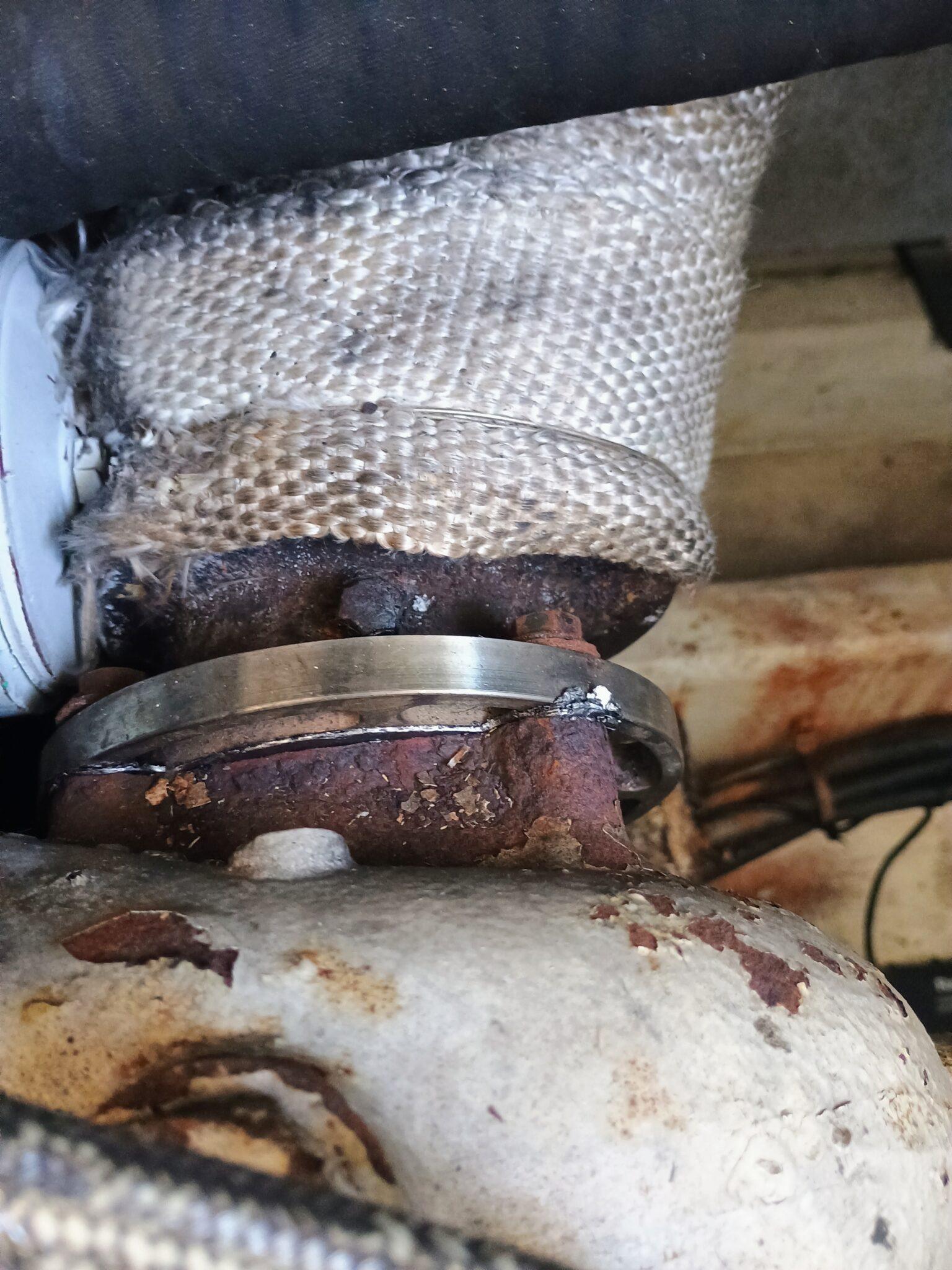

Starboard engine exhaust mixing elbow corrosion

Turbo chargers original on both engines, need rebuilt in the near future

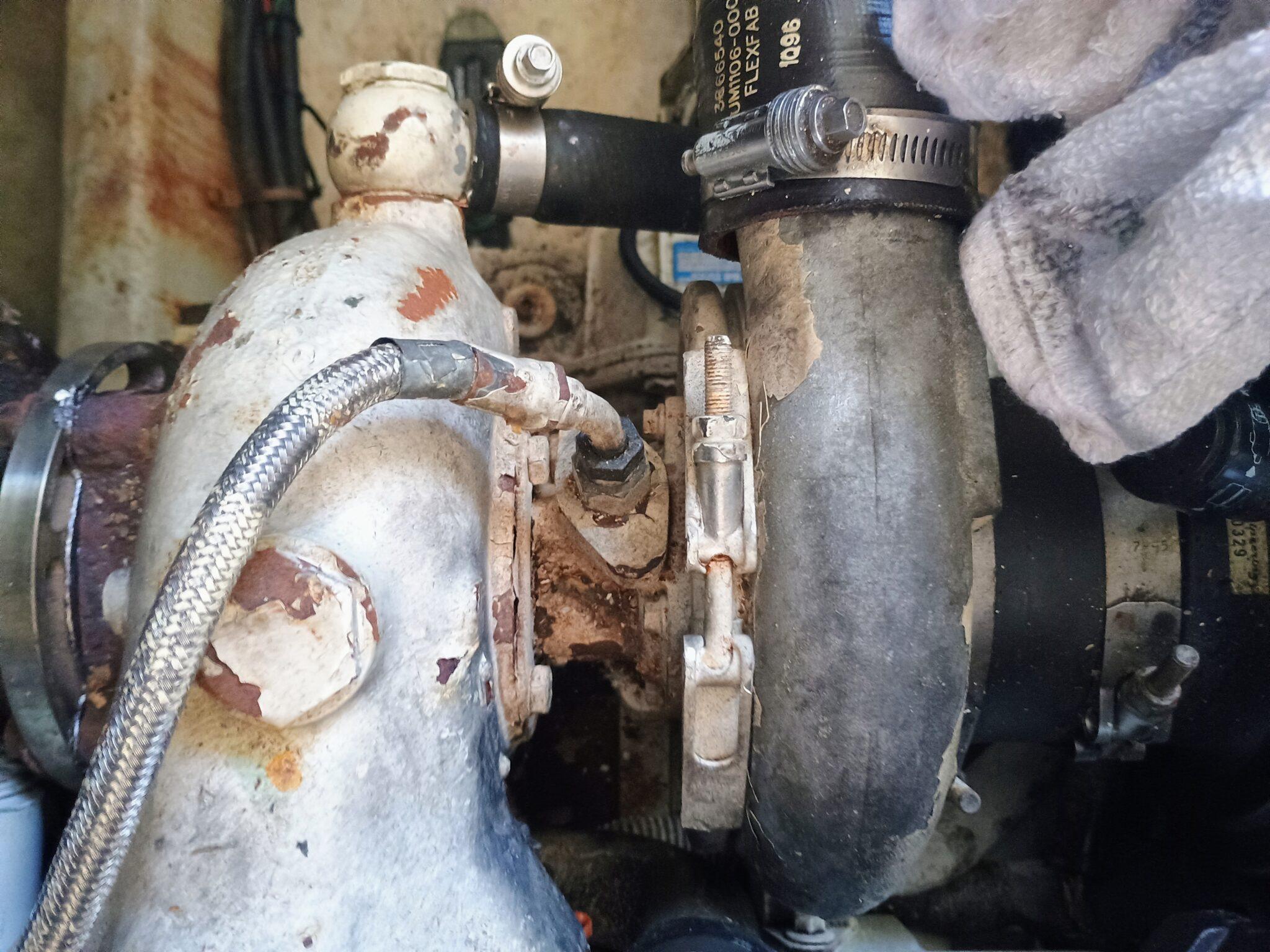

oil leaking from turbo inlet line



OIL ANALYSIS REPORT:

PORT ENGINE CUMMINS 6BTA 5.9:

TIMEOUT Port Engine



STARBOARD ENGINE CUMMINS 6BTA 5.9:

TIMEOUT Starboard Engine



PORT HURTH TRANSMISSION:

ZF Marine Gear port



STARBOARD HURTH TRANSMISSION:

ZF Marine Gear Starboard



WESTERBEKE 8KW GENERATOR:

TIMEOUT Westerbeke Generator

Master Marine Diesel Troubleshooting Guide – 805 Marine Diesel Mechanic

MARINE ENGINE SURVEY SUMMARY:

As a result of my investigation, MARINE ENGINE SURVEY, and by virtue of my experience, my opinion is OVERALL ENGINE RATING:  GOOD: the engine room and engines appear to be well maintained.
