Caterpillar marine diesel engines such as the 3116, 3126, C7.1, and C9 are widely used in sportfishing boats, cruisers, and commercial vessels. These engines are known for reliability—but only when cooling systems, fuel systems, and maintenance schedules are properly maintained.
This guide connects directly with our Master Marine Diesel Troubleshooting Guide and is built from real-world Caterpillar diagnostics in Ventura, Oxnard, Channel Islands Harbor, and Santa Barbara.

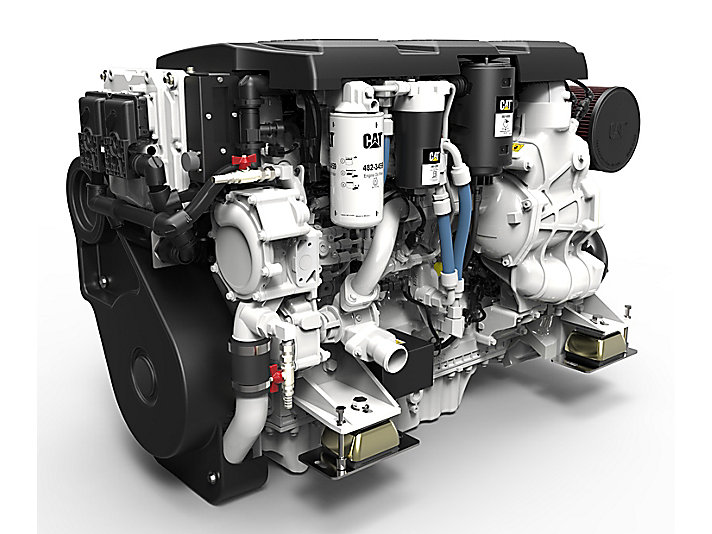

Caterpillar Marine Diesel Engine Overview
Caterpillar engines are designed for durability and high-load operation. However, most failures we see today are not internal—they are caused by external systems such as cooling, fuel, and airflow.
Common Caterpillar Engine Problems
After 30+ years of marine diesel service, these are the most common CAT issues:
- Cooling system restriction: clogged heat exchangers and aftercoolers
- Raw water pump wear: impeller and housing damage
- Fuel contamination: injector wear and poor combustion
- Turbo and airflow issues: loss of boost and black smoke
- Electrical faults: sensors and ECM issues
Related:
Cooling System & Overheating Diagnosis
Overheating is the most common Caterpillar issue and usually results from restricted raw water flow.
- Clogged heat exchangers
- Failed impellers
- Aftercooler restriction
- Blocked exhaust components

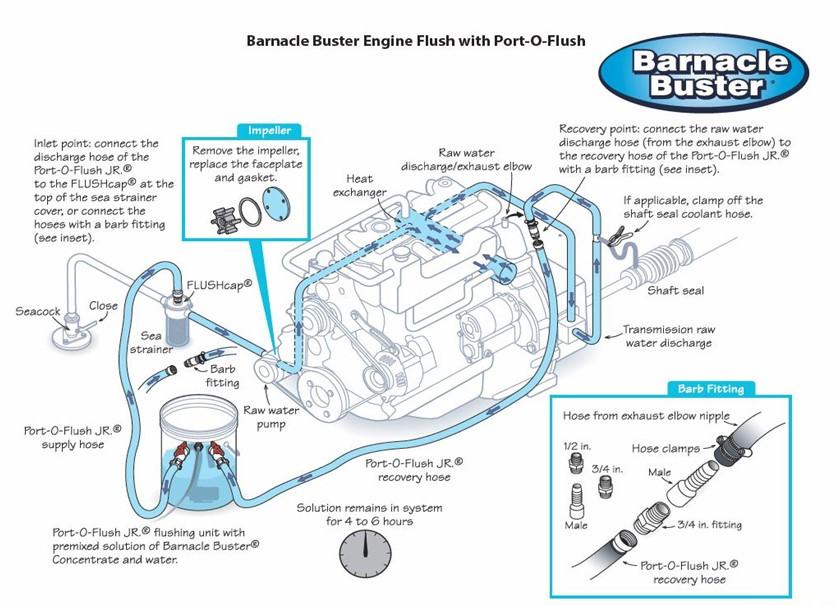

Descaling, Flushing & Corrosion Prevention
Descaling removes salt buildup and corrosion inside cooling passages, restoring proper flow.
