When a Sherwood Pump Starts to Fail: What We See in the Shop (and Why Early Service Saves Your Engine)
If you run a marine diesel engine long enough, you’ll eventually meet one of your most important—and most overlooked—engine components: the Sherwood raw-water pump. These bronze beauties are the heart of your cooling system, pulling seawater through the strainer, pushing it through the heat exchanger, and keeping your diesel at the perfect operating temperature.
At 805 Marine Mechanic, we’ve rebuilt and replaced hundreds of Sherwood pumps on everything from Cummins and Caterpillar inboards to Onan and Westerbeke gensets. While Sherwood pumps are tough, they live a brutal life: salt water, vibration, and heat. Over time, that takes its toll.
The Job Your Sherwood Pump Does (and Why It’s So Hard on Itself)

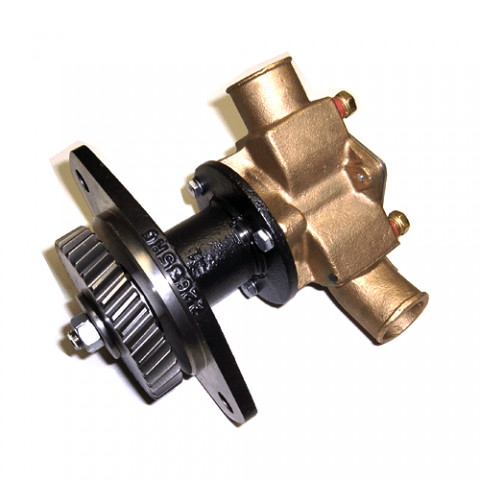

The Sherwood raw-water pump is usually engine-driven — by belt, gear, or flange. Its flexible impeller draws in seawater and forces it through the cooling system, protecting the engine from overheating.
Every revolution moves abrasive seawater through bronze and rubber components. Over thousands of hours, impeller vanes harden, seals begin to drip, and shafts start to wear. Catching these early is the key to avoiding costly downtime.
Early Warning Signs of Sherwood Pump Failure
1. A Drip That Shouldn’t Be There
That small saltwater drip under your pump? It’s the first whisper of seal failure. Once the shaft seal starts leaking, salt crystals form, corrosion eats the bronze, and soon you’ll have a steady spray. If you notice green crust or salt deposits around your pump, it’s time for professional attention.
2. Reduced Water Flow or Higher Temps
If your exhaust water flow looks weak or your diesel runs hotter than normal, the impeller may be failing. Over time, heat and saltwater make the rubber brittle. Vanes crack and break off, reducing flow and efficiency.
3. Unusual Noise or Vibration
A faint squeal or grinding sound near the front of the engine often signals worn bearings or misalignment. Left unchecked, it can cause shaft wobble, seal leaks, and catastrophic pump failure.
4. Corrosion and Electrolysis
Marine environments are unforgiving. Even bronze pumps suffer galvanic corrosion if bonding or zinc protection is poor. White residue, uneven pitting, or green staining are red flags that your pump or bonding system needs inspection.
5. Black Rubber Bits in the Heat Exchanger
If impeller vanes have broken off, the pieces often lodge in the heat exchanger. We always flush and inspect the entire cooling circuit when replacing failed impellers at 805 Marine Mechanic.
What We Do During a Professional Sherwood Pump Service
Servicing a Sherwood pump is more than just changing an impeller. A proper rebuild includes full disassembly, inspection, seal and bearing replacement, and testing. Here’s our typical process at 805 Marine Mechanic:
- Remove the pump carefully to preserve alignment.
- Disassemble completely — impeller, seal, wear plate, and bearings.
- Inspect for corrosion, runout, and wear.
- Clean all parts with marine-safe solvents.
- Replace seals, gaskets, and impeller with genuine Sherwood parts.
- Reassemble with proper lubrication and torque specs.
- Bench-test flow and reinstall with new gaskets.

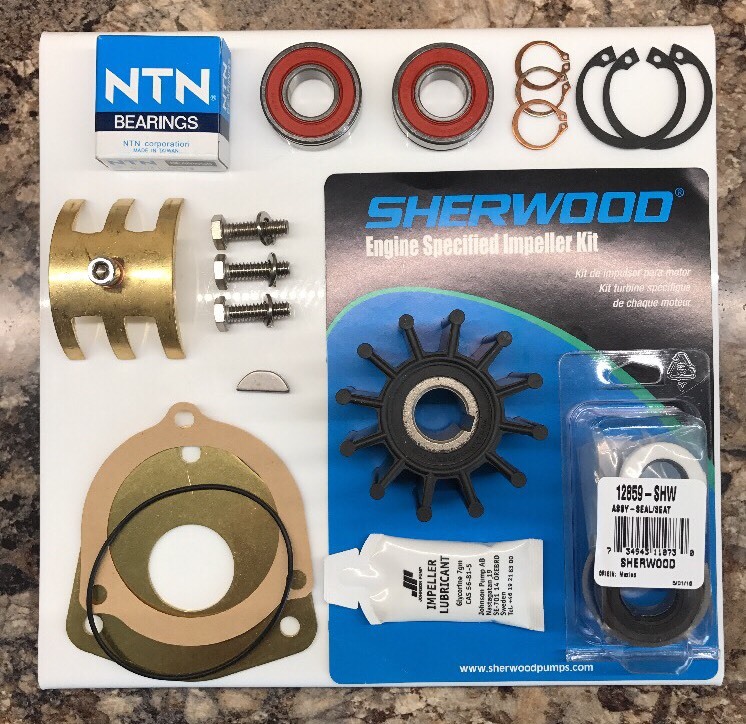

Example: For a Sherwood P105, we use Impeller Kit 17000K and Seal Kit 23975K. You can view full compatibility charts in the Sherwood Catalog (PDF).
Master Marine Diesel Troubleshooting Guide – 805 Marine Diesel Mechanic
Real-World Example: Catching a Failure Before It Happens
A local boater came in after noticing one exhaust outlet was barely trickling water. We pulled his port-side Sherwood G2906 and found three missing impeller vanes, a leaking seal, and bearings about to seize. A rebuild saved his engine — and several thousand dollars in potential damage.
How Often Should a Sherwood Pump Be Serviced?
- Inspect impeller annually or every 200 hours.
- Replace impeller every season in saltwater.
- Rebuild pump every 2–3 years (600–800 hours) or at the first sign of leaks or corrosion.
Tips to Extend Pump Life (Without DIY Rebuilding)
- Flush with fresh water after saltwater runs.
- Keep strainers clean and clear.
- Maintain proper bonding and zinc protection.
- Never run the engine dry.
- Schedule annual inspection with your marine technician.
At 805 Marine Mechanic, we maintain detailed service records for each pump — model, rebuild date, parts used — ensuring reliable cooling year-round.
Photo Gallery: Common Sherwood Pump Conditions
Why Early Service Saves More Than Just a Pump
Think of your Sherwood pump as a small investment protecting your entire engine. A $600 pump can save a $25,000 powerplant. Regular inspection keeps the cooling system healthy, the engine efficient, and your weekend stress-free.
Ready for a Pump Inspection?
If you’ve noticed leaks, noise, heat spikes, or weak exhaust water, schedule a professional inspection today.
805 Marine Mechanic
Serving boaters across Ventura, Santa Barbara, and the California Central Coast.
We specialize in Sherwood pump rebuilds, raw-water system diagnostics, and diesel cooling service.
👉 Book your Sherwood pump service now at SBMarineMechanic.com
Further Resources
- Sherwood Marine Pump Catalog (PDF)
- Sherwood Pump Identification Guide
- 805 Marine Mechanic – Marine Diesel Service
Final Thoughts
Your Sherwood pump may be small, but it’s the heartbeat of your diesel’s cooling system. Pay attention to the early warning signs — drips, noise, corrosion — and have it serviced by a professional before it becomes an emergency.
At 805 Marine Mechanic, we don’t just fix pumps — we keep engines cool, reliable, and ready for your next voyage.
