Marine Diesel Overheating at Idle vs Cruise — Complete Diagnosis Guide
Marine diesel overheating problems do not all have the same root cause. One of the fastest ways to diagnose the issue is identifying when the engine temperature rises:
- Overheats at idle only
- Overheats at cruise speed or under load
- Overheats constantly
Each symptom pattern points toward different failures inside the marine cooling system. Understanding these differences helps avoid unnecessary parts replacement and speeds up troubleshooting.
Overheating at Idle — Most Common Causes
If temperature climbs mainly at idle or slow trolling speeds, the issue is typically related to low raw water flow or poor circulation.

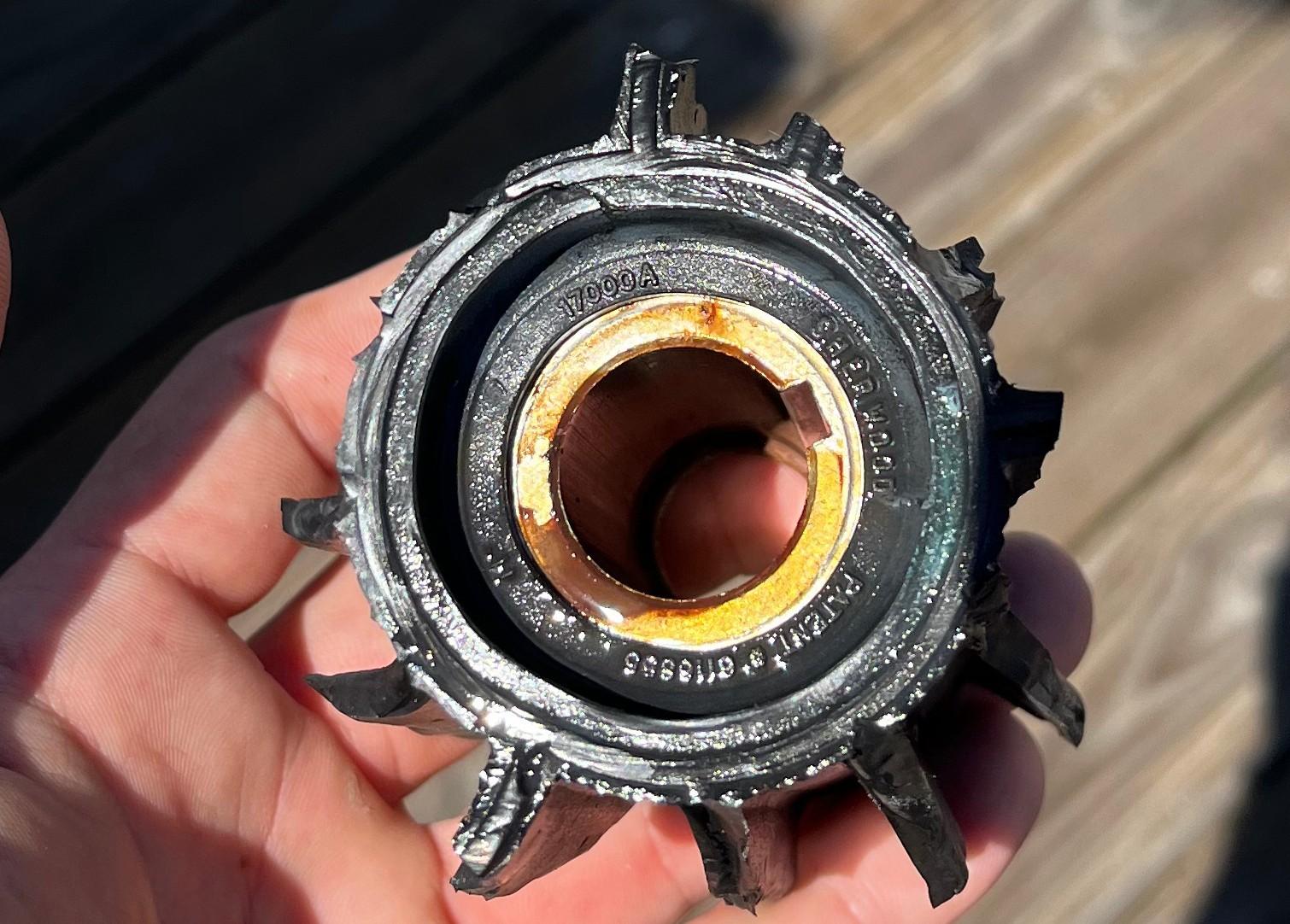

1. Damaged or Missing Raw Water Pump Impeller
- Overheats at idle first
- Weak exhaust water discharge
- Temperature may stabilize slightly at higher RPM
A damaged impeller reduces cooling water delivery when pump speed is low.

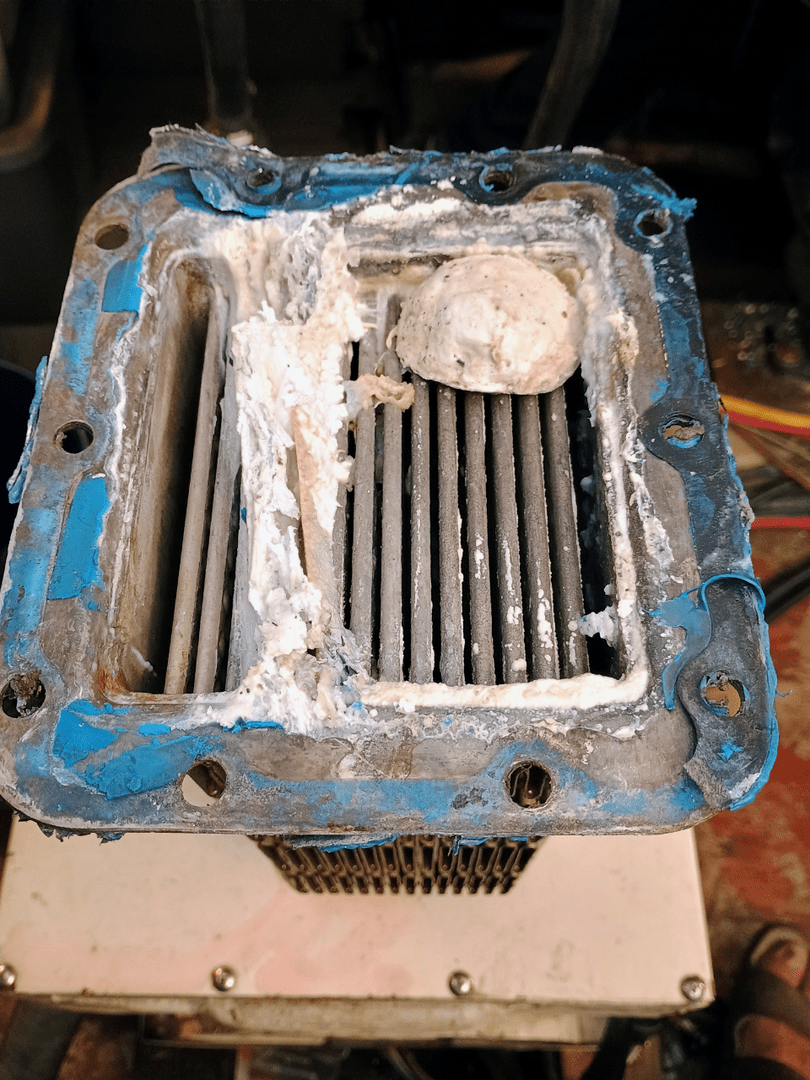

2. Partial Heat Exchanger Blockage
- Salt scale or zinc debris
- Marine growth inside tubes
- Reduced heat transfer efficiency
Restricted heat exchangers are a very common cause of idle overheating in saltwater environments.
3. Air Lock or Poor Coolant Circulation
- Low coolant level
- Air trapped after service
- Faulty coolant circulation pump
Overheating at Cruise or Under Load — Most Common Causes
If engines run cool at idle but overheat under throttle, the issue usually involves insufficient cooling capacity during high demand.
1. Restricted Raw Water Intake
- Sea strainer blockage
- Intake grate fouling
- Collapsed suction hose
2. Fouled Aftercooler or Intercooler
- Higher exhaust temperatures
- Loss of power
- Possible black smoke
3. Exhaust System Restrictions
- Collapsed exhaust hose
- Carbon buildup
- Waterlock blockage
4. Propeller Overload
- Marine growth
- Incorrect pitch
- Excessive vessel weight
Overheating at Both Idle and Cruise
- Failed thermostat
- Coolant pump failure
- Severe heat exchanger blockage
- Head gasket or internal engine issues
Quick Diagnostic Comparison
| Symptom | Likely Cause |
|---|---|
| Overheats only at idle | Impeller damage, weak raw water flow, scaled heat exchanger |
| Overheats only at cruise | Raw water restriction, overload, intercooler fouling |
| Overheats always | Thermostat failure, coolant circulation problems |
Technician Diagnostic Workflow
Our trained technician process at 805 Marine Diesel Mechanic includes:
- Verify raw water discharge volume
- Inspect seawater pump impeller
- Measure temperature delta across heat exchanger
- Check coolant circulation system
- Evaluate vessel load and propeller demand
- Pressure test cooling system
- Master Marine Diesel Troubleshooting Guide – 805 Marine Diesel Mechanic
Preventative Maintenance Tips
- Replace impeller annually
- Service heat exchanger every 2–3 years
- Inspect zinc anodes regularly
- Monitor exhaust water flow visually
