Marine Fuel Filtration System Upgrade

Racor Dash Mounted Vacuum Gauge

Same specifications as the gauge above—dash mounted and connected with 1/4″ transparent hose and compression fittings. Monitor restriction from the helm and plan filter changes proactively.

Racor Water Alarm Detection and Filter Restriction Kit works with all Racor Turbine Series or Marine Turbine Series fuel filter/water separator assemblies. Manufactured with premium materials and 100% electronically tested, the module self-checks at power-up—illuminating the DRAIN WATER LED and sounding a buzzer for 2–5 seconds. If no water is present, the alarm clears automatically.

KEENANFILTERS

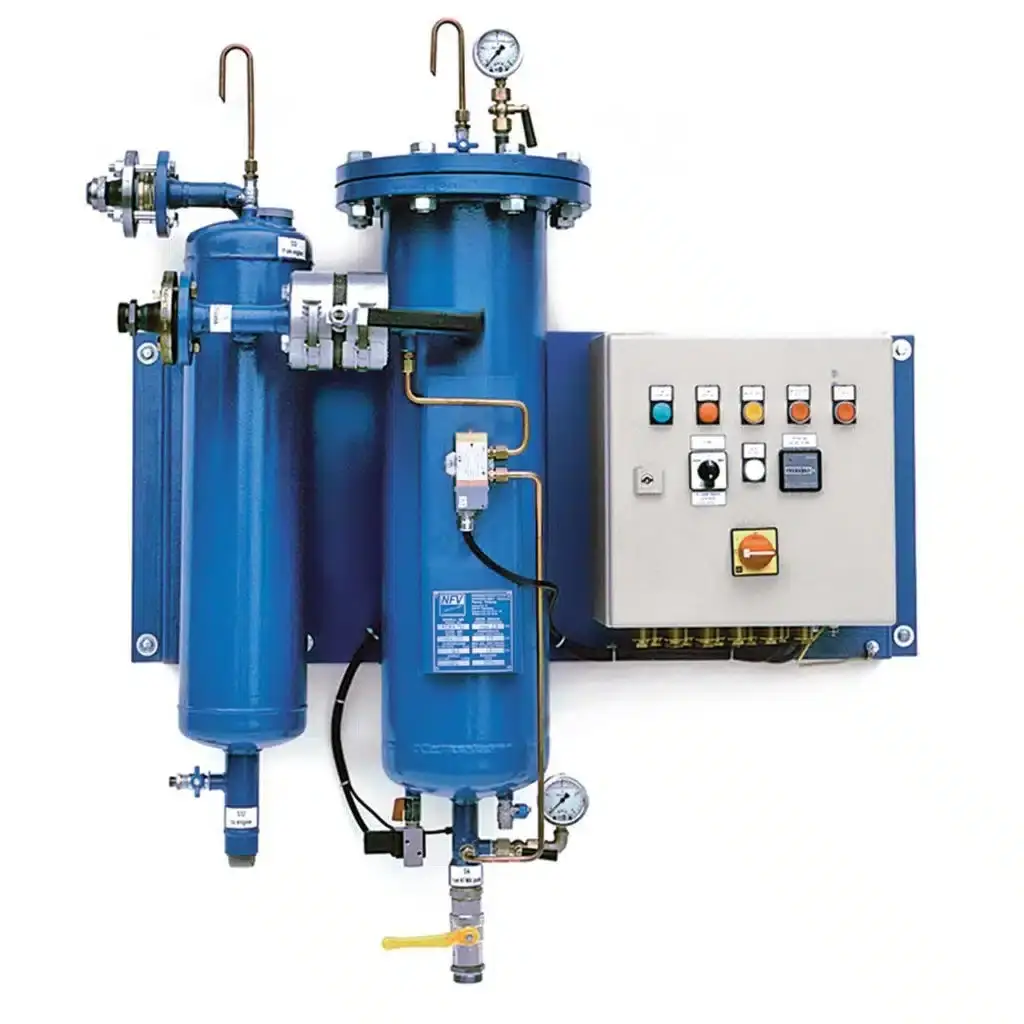

A compact dual-filter diesel fuel management system for small to mid-size engines.

Our full-feature MK60DP EFS is an advanced double-filter model that keeps fuel clean and your motor running smoothly. It does more than filter—it performs preventative fuel polishing, removing contaminants, water, and impurities before they ever reach your engine.

With double-filter functionality you can switch filters on the fly using the EFS system—no need to stop the motor. The MK60DP EFS includes a remote warning panel, plus integrated fuel pumps for bleeding, priming, and backup of the main engine pump. It uses widely available Racor® elements so you can source replacements anywhere.

Benefits of using KEENAN dual filters

• Switch and replace filters without stopping motor(s)
• Fuel polishing delivers cleaner fuel, reducing maintenance costs
• Remote warning panel can mount anywhere convenient
• Advance warning enables finer micron selection confidently
• Optional EFS allows manual/automatic filter changes from the panel
• Integrated pump provides backup if main pump fails
• System test mode verifies integrity after service
• Optional vacuum transducer for data logging and alerts
• Optional GSM remote monitoring—call for details
• Uses genuine, widely available Racor® elements
• Machined from high-quality aluminum & stainless

Marine Fuel Filtration System Upgrade:

Serving Santa Barbara Harbor, Ventura Harbor, and Channel Islands Harbor.

The Racor Fuel Filter Water Separator Turbine Series is a three-stage system built from rugged, non-corrosive die-cast aluminum with a diesel-rated bowl. It protects engines from water, silica, sand, dirt, and rust to keep injection systems healthy.

Marine Fuel Filtration System Upgrade: Ensuring Peak Performance and Reliability for Your Vessel

Introduction

In real-world boating—swell, slosh, dock fueling, long idle periods—fuel quality is everything. Upgrading your marine diesel fuel filtration is the single best move you can make to protect injectors, pumps, and your day on the water. Below, 805 Marine Mechanic covers practical upgrades (Racor Turbine, dash vacuum gauges, water alarms, dual filters, and polishing) and how we install and service them dockside in Channel Islands, Ventura, and Santa Barbara.

Importance of Marine Engine Fuel Filtration

Benefits of a Fuel System Upgrade

• Improved engine performance: Clean fuel burns cleanly—smoother idle, stronger pull, fewer smoke puffs.
• Better fuel economy: Efficient combustion and happy injectors equal fewer gallons per hour.
• Component protection: Quality filtration shields high-pressure pumps, rails, and tips from abrasive particles and water.

Impact on Boat Maintenance

• Fewer surprises: Water alarms and helm-mounted gauges let you correct problems early.
• Longer service life: Less contamination = less wear = longer intervals and fewer big-ticket repairs.

High-Quality Filtration Systems

Key Features

• Multi-stage filtration: Separates water, coalesces droplets, and traps fine solids before they reach the engine.
• Marine-tough materials: Non-corrosive housings and diesel-rated bowls for longevity offshore.
• Wide compatibility: Configurable for small cruisers to commercial vessels.

Latest Technologies

• Higher media efficiency: Modern elements capture ultra-fine particulates with lower restriction.
• Longer service intervals: Bigger dirt-holding capacity + real-time restriction monitoring = fewer unplanned changes.

Choosing Micron Ratings & Elements

• 30 μm (primary pre-filter): Great for boats with variable fuel quality; protects downstream elements.
• 10 μm (balanced choice): Common primary choice for most modern diesels with good fuel sources.
• 2 μm (fine protection): Maximum polish for sensitive injection systems; pair with a larger pre-filter to avoid frequent changes.

Ask us to tailor primary/secondary micron strategy to your engine spec and fuel source.

Dash Gauges, Alarms & Redundancy

• Vacuum gauge at the helm: Watch restriction rise during a run; schedule a swap before it becomes a stall.
• Water-in-fuel alarm: Get a buzzer/light the second the bowl collects water—drain and keep going.
• Dual manifolds: When one element clogs, flip the handle and keep steaming—service the clogged element underway.

Installation Best Practices by 805 Marine Mechanic

• Smart mounting: Clear access for bowl viewing, draining, and element swaps (no yoga needed).
• Proper hose & fittings: USCG-approved fuel hose, chafe protection, double clamps where required.
• Clean plumbing: Correct head height relative to tank, tidy routing, minimal restriction, leak-free unions.
• Commissioning & test: Prime, run, leak-check, verify vacuum readings, and show you the service routine.

Book Your Dockside Install

Service Areas & Support

• Channel Islands: Fast response across local marinas and moorings.
• Ventura: Harbor-side installs with minimal downtime.
• Santa Barbara: From sportfishers to cruisers—we’ve got you covered.

FAQs

How often should I change elements? Use the vacuum gauge as your guide. Change when restriction reaches the engine maker’s threshold or you see rising trends trip-to-trip.

Do I need fuel polishing? If you see recurring filter clogs, algae growth, or cloudy fuel, polishing and tank cleaning are smart add-ons.

Can I run 2 μm primaries? Yes—with adequate pre-filtration and monitoring. We’ll balance micron ratings to your system’s suction capacity.
