Knowing the correct oil type, oil capacity and filter number is essential when servicing a Volvo Penta marine diesel. This Volvo Penta marine engine oil type and capacity chart covers popular AD41, TAMD, D4, D6, D9, D11, D12 and D13 engines, while our Marine Diesel Troubleshooting Guide can help diagnose low oil pressure, oil consumption, blue smoke, overheating and other diesel-engine problems.
Volvo Penta Marine Engine Oil Type & Capacity Chart
Quick-reference oil capacities, Volvo Penta oil-filter numbers and lubricant recommendations for common Volvo Penta marine diesel engines.
Volvo Penta Oil Capacity & Filter Chart
| Volvo Penta Engine | Standard Oil Capacity | Standard Oil Filter | Recommended Oil |
|---|---|---|---|
| AD41 / TAMD41 | Approx. 11 L / 11.6 qt* | Volvo Penta 471034 | Volvo Penta VDS-4.5 15W-40 / suitable Delo or Rotella meeting required Volvo specification |
| TAMD63P-A | Approx. 28 L / 7.4 gal incl. filters* | Volvo Penta 847741 | Volvo Penta VDS diesel oil / VDS-4.5 15W-40 / suitable approved equivalent |
| TAMD74 / TAMD75 | Approx. 26 L / 6.9 gal incl. filters* | Volvo Penta 847741 | Volvo Penta VDS diesel oil / VDS-4.5 15W-40 / suitable approved equivalent |
| D4 | 12 L / 3.2 gal incl. filters | 22030848 Full-Flow + 22030852 Bypass | Volvo Penta VDS-4.5 SAE 15W-40 / approved equivalent |
| D6 | 20 L / 5.3 gal incl. filters | 22030848 Full-Flow + 22030852 Bypass | Volvo Penta VDS-4.5 SAE 15W-40 / approved equivalent |
| D9 | 38 L / 10.0 gal incl. filters | 21707133 Full-Flow + 21707132 Bypass* | Volvo Penta VDS-4.5 15W-40 / approved equivalent |
| D11 | 38 L / 10.0 gal incl. filters | 21707133 Full-Flow + 21707132 Bypass* | Volvo Penta VDS-4.5 SAE 15W-40 / approved equivalent |
| D12 | 56 L / 14.8 gal incl. filters | 21707133 Full-Flow + 21707132 Bypass* | Volvo Penta VDS diesel oil / VDS-4.5 15W-40 where applicable |
| D13 | 45 L / 11.9 gal typical oil-change volume* | 21707133 / 23658092 Full-Flow + 21707132 Bypass* | Volvo Penta VDS-4.5 SAE 15W-40 / approved equivalent |
Filter note: Some Volvo Penta engines use more than one lubrication filter. D4 and D6 installations, for example, commonly use both a full-flow oil filter and a bypass oil filter. Larger D-series engines may use multiple full-flow filters plus a bypass filter, so filter quantity should also be verified before ordering.

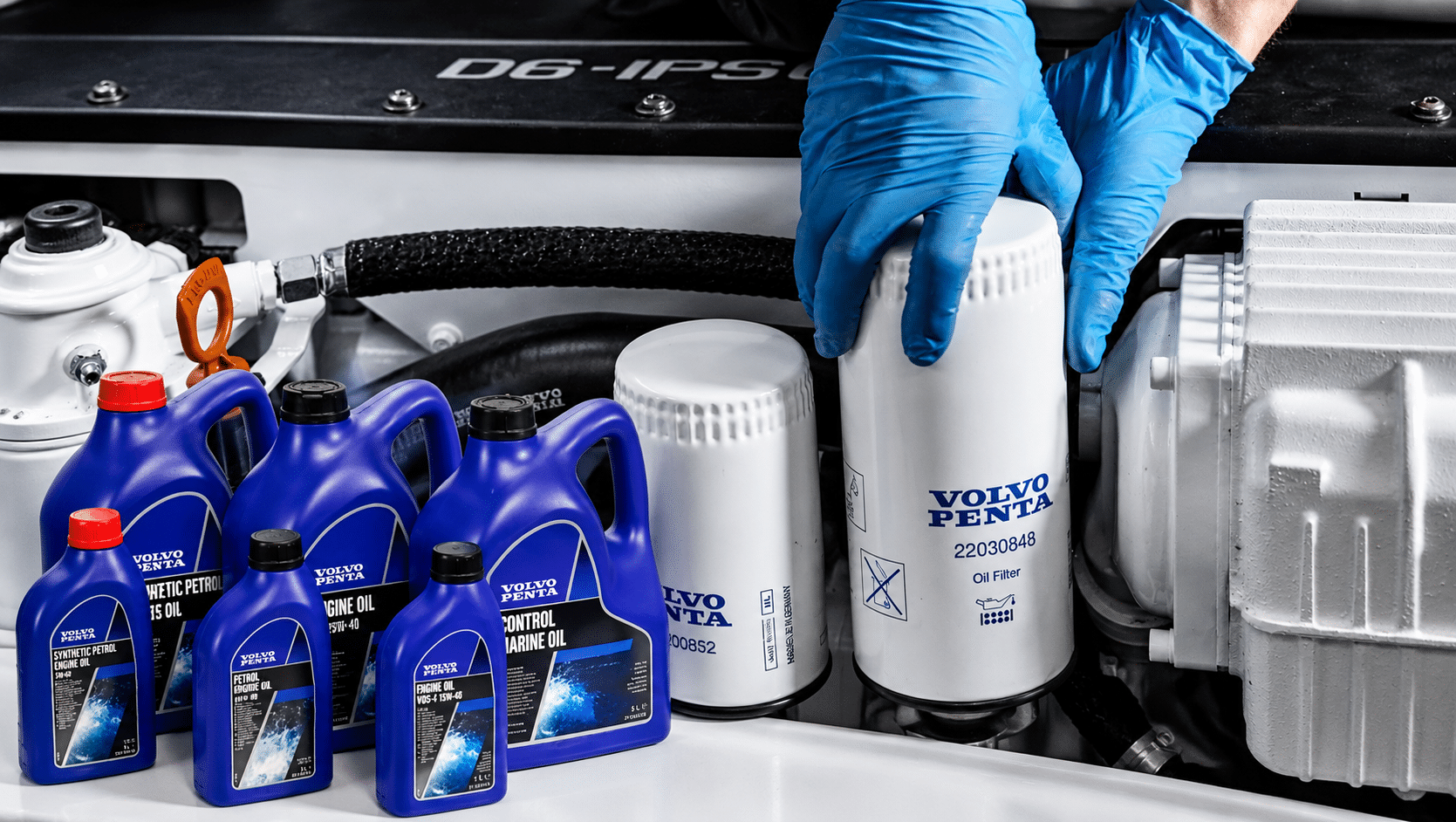

What Oil Should You Use in a Volvo Penta Marine Diesel?
Volvo Penta’s own engine oil provides the straightforward OEM-associated choice. For many of the engines covered here, SAE 15W-40 is the familiar marine-service viscosity, with Volvo Penta VDS specifications providing the important performance requirement.
Chevron Delo and Shell Rotella are also widely used in heavy-duty diesel applications. However, the words Delo or Rotella by themselves do not guarantee compatibility. The exact product must satisfy the Volvo Penta oil-quality and viscosity requirements for the particular engine.
For factory information, Volvo Penta provides its Genuine Parts & Accessories information and its engine manuals and support search, where owners can identify documentation for their engine designation and serial number.
Volvo Penta AD41 / TAMD41
The AD41 and TAMD41 remain common in older cruisers and sport boats. A typical service quantity is around 11 liters, but the exact engine designation and installation should be confirmed before filling.
Volvo Penta 471034 is the familiar oil-filter number for the TMD41/TAMD41 family. These engines demonstrate why the full model designation matters when ordering service parts.
Volvo Penta TAMD63P-A
The TAMD63P-A is still found in many motor yachts and cruisers. A common service reference is approximately 28 liters including filter volume, depending on the installation.
Oil level can change with engine inclination, so the boat’s actual installation and calibrated dipstick should determine the final fill.
Volvo Penta TAMD74 / TAMD75
The TAMD74 and TAMD75 belong to Volvo Penta’s later high-output TAMD marine-diesel family. A common level-installation quantity is in the mid-20-liter range including filtration.
Many of these engines now have substantial operating hours, making correct oil selection and regular oil analysis increasingly valuable.
Volvo Penta D4
The D4 is one of Volvo Penta’s most widely used electronically controlled marine diesels. A common established D4 configuration uses approximately 12 liters or 3.2 U.S. gallons including the oil filters.
Many established D4 engines use Volvo Penta 22030848 as the full-flow filter and 22030852 as the bypass filter. Later generations should be verified by serial number.
Volvo Penta D6
The D6 is extremely common in cruisers, sportfishers, yachts and IPS-powered vessels. A common established D6 service quantity is approximately 20 liters or 5.3 U.S. gallons including filters.
Like the D4, many D6 engines use both a full-flow oil filter and a separate bypass filter.
Volvo Penta D9
The D9 moves into Volvo Penta’s larger six-cylinder marine range. A common level-installed propulsion configuration uses approximately 38 liters or 10 U.S. gallons including filters.
Installation angle can substantially change the specified quantity, which is why the dipstick and engine-specific documentation remain important.
Volvo Penta D11
A common level-installed D11 marine configuration uses approximately 38 liters or 10 U.S. gallons including filters. An inclined installation can require a different quantity.
Correct VDS oil quality, filtration and regular oil-level checks are important on these high-output electronically controlled engines.
Volvo Penta D12
The D12 has a considerably larger lubrication system. Applicable level-installed configurations use approximately 56 liters including the oil filters.
The lubrication system may incorporate multiple full-flow filters plus a bypass filter, making it important to order the complete filter requirement.
Volvo Penta D13
Established D13-700 through D13-1000 propulsion engines have an approximate oil-change volume of 45 liters or 11.9 U.S. gallons. Other D13 marine configurations can differ.
Engine generation, propulsion configuration and serial number should be verified before ordering filters or establishing the final refill quantity.

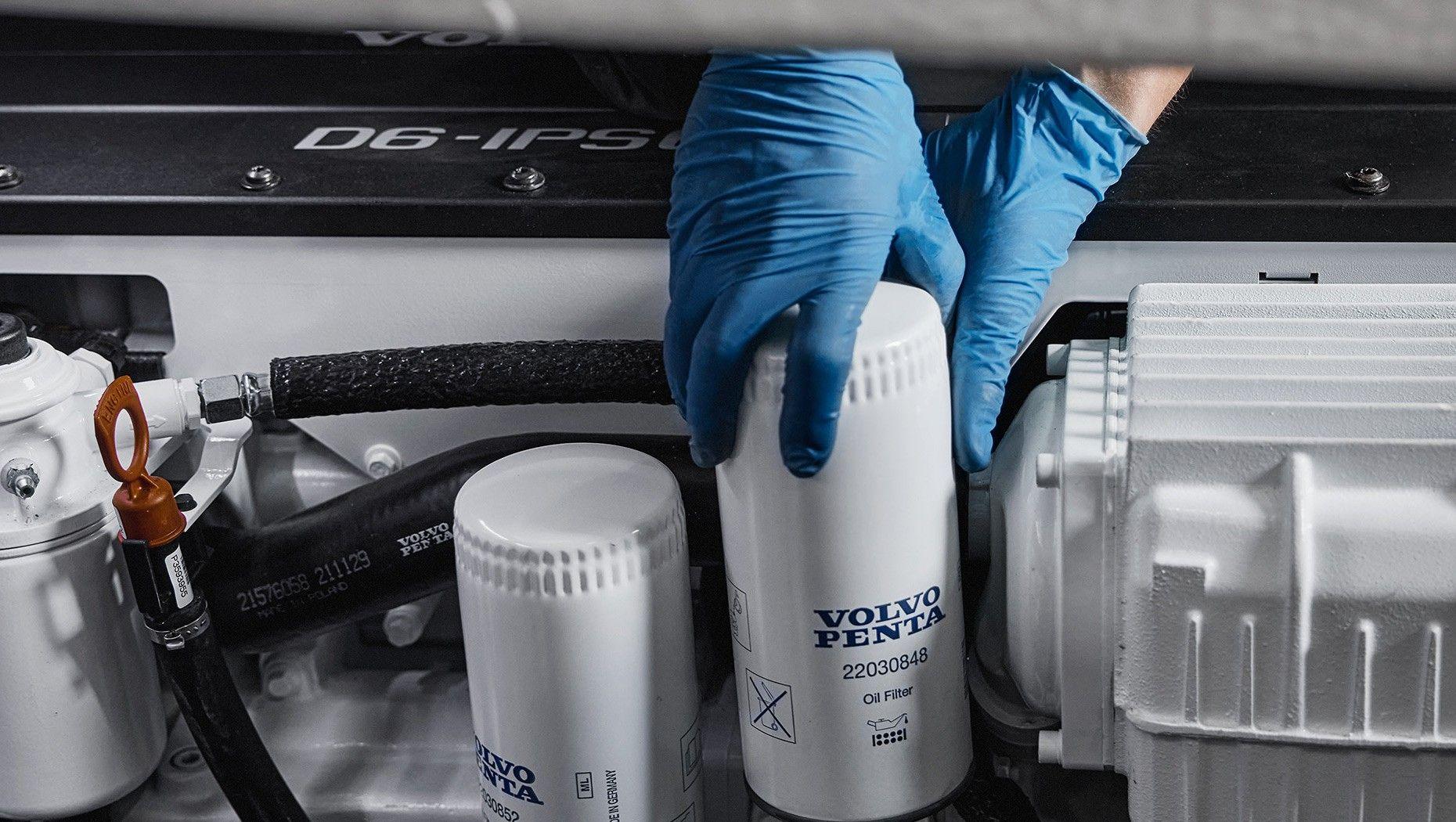

Volvo Penta Marine Engine Oil Filters
One important difference between Volvo Penta and some simpler diesel installations is the use of multiple lubrication filters. The most visible oil filter is not necessarily the only filter that needs replacement.
Filters the primary lubricating-oil flow circulating through the engine.
Filters a smaller portion of the oil flow to provide additional contamination control.
Many D4 and D6 engines use a full-flow filter plus a separate bypass filter. Larger engines can incorporate multiple full-flow filters and bypass filtration. Always confirm both the part number and required quantity before starting the service.
Need Volvo Penta Marine Diesel Service?
805 Marine Diesel Mechanic provides Volvo Penta diagnostics, oil and filter service, cooling-system maintenance, EVC diagnostics and marine engine surveys throughout Ventura, Oxnard, Channel Islands Harbor and Santa Barbara.
Why Volvo Penta Oil Capacity Can Change
Oil capacity is not always determined by engine model alone. On a marine installation, engine inclination can change the relationship between the oil level in the sump and the dipstick. Oil-pan configuration and filtration arrangement can also change the service quantity.
The numbers in this chart should therefore be treated as common service references rather than an instruction to pour the entire listed quantity into every engine carrying the same model designation.
Full-Flow and Bypass Oil Filters
Volvo Penta uses bypass filtration on a number of its marine diesel engines. D4 and D6 engines commonly use a full-flow filter and a separate bypass filter, while larger engines can use multiple full-flow filters together with bypass filtration.
Changing only one filter because it is the easiest to see can leave another lubrication filter in service beyond its intended interval.
Do Not Overfill a Volvo Penta Diesel
Overfilling is not additional protection. Excess oil can contribute to aeration, crankcase-pressure problems and oil carryover, while insufficient oil reduces the lubrication reserve available during vessel movement and sustained operation.
A practical service procedure is to initially fill below the expected final quantity, start the engine, verify oil pressure immediately and inspect the filters and drain system for leakage. Shut the engine down, allow the oil to drain back and then establish the final level on the dipstick.
Oil Analysis
Oil analysis can provide valuable information about wear metals, fuel dilution, soot, coolant contamination and lubricant condition. Trending samples from the same engine over time can reveal developing changes that a single isolated sample may not show.
Oil analysis is also valuable during a Volvo Penta Marine Engine Survey, where lubrication findings can be considered together with EVC diagnostics, cooling-system condition and sea-trial performance.
Volvo Penta Marine Service in Ventura & Santa Barbara
805 Marine Diesel Mechanic services Volvo Penta-powered boats throughout Ventura, Ventura Harbor, Oxnard, Channel Islands Harbor and Santa Barbara. Services include routine maintenance, oil and filter service, EVC diagnostics, cooling-system troubleshooting, fuel-system diagnosis, turbocharger and aftercooler evaluation, and marine engine surveys.
Volvo Penta continues to support a broad range of marine propulsion engines. Owners researching current equipment can review Volvo Penta’s marine inboard engine range.
If a Volvo Penta is consuming oil, producing blue smoke, losing oil pressure or developing abnormal oil-analysis results, changing the oil alone should not be treated as the repair. The underlying mechanical or operating cause should be diagnosed before more expensive damage develops.
Volvo Penta Oil & Service References
For newer D-series engines, Volvo Penta’s engine-specific manuals and current lubrication recommendations should take priority over a generic oil chart. The engine designation and serial number provide the best starting point when confirming service information.
For additional maintenance and inspection information, see our Common Volvo Penta Marine Engine Survey Findings.
Volvo Penta Marine Diesel Mechanic
Oil & Filter Service • EVC Diagnostics • Cooling Systems • Fuel Systems • Turbochargers • Aftercoolers • Marine Engine Surveys
Ventura • Oxnard • Channel Islands Harbor • Santa Barbara
Volvo Penta Marine Engine Oil FAQ
Common questions about Volvo Penta oil capacities, VDS oil, full-flow filters, bypass filters and proper marine diesel service.
What oil should I use in a Volvo Penta marine diesel?
Volvo Penta VDS engine oil is the OEM-associated choice, with VDS-4.5 SAE 15W-40 appropriate for many applications. Suitable Chevron Delo or Shell Rotella products may also be used when the exact product meets the Volvo oil specification required by the engine.
Can I use Chevron Delo in a Volvo Penta diesel?
Yes, when the specific Delo product satisfies the required Volvo VDS specification and viscosity for the engine. Always verify the engine designation and applicable Volvo Penta oil requirement.
Can I use Shell Rotella in a Volvo Penta marine engine?
A suitable Rotella product can be appropriate when it meets the required Volvo oil quality and viscosity. Do not select an oil based only on the Rotella brand name.
Is Volvo Penta VDS-4.5 15W-40 suitable for older engines?
VDS-4.5 SAE 15W-40 is used across many Volvo Penta diesel applications and can be suitable for numerous older engines. The individual engine manual and required VDS specification should still be checked before service.
How much oil does a Volvo Penta D4 hold?
Applicable established D4 marine engines use approximately 12 liters or 3.2 U.S. gallons including the oil filters. Verify the exact engine generation and serial number before filling.
What oil filters does a Volvo Penta D4 use?
Many established D4 engines use Volvo Penta 22030848 as the full-flow oil filter and 22030852 as the bypass oil filter. Verify the serial number because later engine generations can differ.
How much oil does a Volvo Penta D6 hold?
Applicable established D6 marine engines use approximately 20 liters or 5.3 U.S. gallons including the oil filters. The final oil level should always be confirmed on the dipstick.
What oil filters does a Volvo Penta D6 use?
Many established D6 engines use Volvo Penta 22030848 full-flow and 22030852 bypass oil filters. Check the engine serial number before ordering parts.
How much oil does a Volvo Penta D9 hold?
A common level-installed D9 marine configuration uses approximately 38 liters or 10 U.S. gallons including filters. Installation angle can change the specified quantity substantially.
How much oil does a Volvo Penta D11 hold?
A common level-installed D11 marine configuration uses approximately 38 liters or 10 U.S. gallons including filters. An inclined installation can require a different quantity.
How much oil does a Volvo Penta D12 hold?
Applicable D12 marine configurations have an approximate oil capacity of 56 liters including the oil filters. Verify the exact D12 designation and installation before servicing.
How much oil does a Volvo Penta D13 hold?
Established D13-700 through D13-1000 propulsion engines have an approximate 45-liter or 11.9-gallon oil-change volume. Other D13 marine configurations can have different capacities.
Why does engine inclination change Volvo Penta oil capacity?
The engine’s installation angle changes how oil sits in the sump relative to the dipstick and internal components. This is why the actual marine installation must be considered when establishing the final oil level.
Does a Volvo Penta D4 have two oil filters?
Many D4 configurations use both a full-flow oil filter and a separate bypass oil filter. Both should be considered when performing the scheduled lubrication service.
Does a Volvo Penta D6 have two oil filters?
Many D6 engines use a full-flow filter together with a separate bypass oil filter. Both filters form part of the lubrication filtration system.
Why do larger Volvo Penta engines use multiple oil filters?
Full-flow filtration handles the primary lubricating-oil flow, while bypass filtration can provide additional filtration of a smaller portion of circulating oil. Some larger Volvo Penta engines use multiple full-flow filters plus a bypass filter.
Can overfilling a Volvo Penta diesel cause problems?
Yes. Excessive oil can contribute to aeration, crankcase-pressure problems and oil carryover. Establish the final level using the properly calibrated dipstick rather than assuming more oil provides additional protection.
Should I change every oil filter when changing the oil?
Follow the Volvo Penta maintenance requirements and replace the lubrication filters specified for that service. On engines with full-flow and bypass filtration, overlooking one filter can leave old contaminated oil and filter media in service.
Is oil analysis worthwhile on a Volvo Penta marine diesel?
Yes. Oil analysis can help identify changes in wear metals, fuel dilution, coolant contamination, soot and lubricant condition. Trending results over multiple services can be especially useful.
